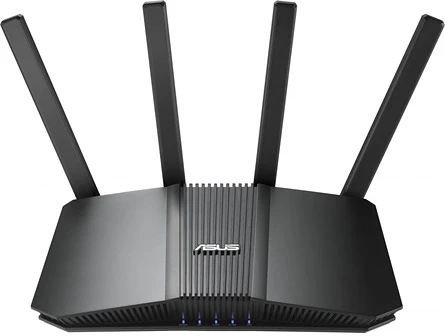

Asus 90IG0A70-MO9C00
Rt-be58u v2 be3600 dual-band wi-fi usb-5g/nr router

3570Mb/s, IEEE 802.11be (Wi-Fi 7), WAN (1Gb/s): 1 port, WAN (2,5Gb/s): 1 port, LAN (1Gb/s): 4 port, LAN (2,5Gb/s): 1 port, USB3.0, USB-5G/NR, antennák száma: 4db, médiaszerver, Mesh Wi-Fi, energiafelhasználás: 24W, fekete3570Mb/s, IEEE 802.11be (Wi-Fi 7), WAN (1Gb/s): 1 port, WAN (2,5Gb/s): 1 port, LAN (1Gb/s): 4 port, LAN (2,5Gb/s): 1 port, USB3.0, USB-5G/NR, antennák száma: 4db, médiaszerver, Mesh Wi-Fi, energiafelhasználás: 24W, feketeGarancia: 3 Év

Model

RT-BE58U

Network Standard

IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment

BE3600 ultimate BE performance : 688+2882 Mbps

WiFi Data Rate

WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
802.11g : up to 54 Mbps
802.11b : up to 11 Mbps
802.11a : up to 54 Mbps

Antenna

External antenna x 4

Transmit / Receive

5GHz 2x2
2.4GHz 2x2

Processor

2.0 GHz quad-core processor

Memory

256 MB Flash
1 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

5 GHz
2.4 GHz

Operating Mode

Wireless router mode
Access point mode
Media bridge mode

I/O Ports

1x 2.5G for WAN/LAN,
1x 1G for WAN/LAN,
3 x 1G LAN,
USB 3.2 Gen 1 x 1

Buttons

WPS Button, Reset Button, Power Button

LED Indicator

Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1

Power Supply

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current

Package Content

RT-BE58U
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g)

461g

Product Dimensions

238 x 147 x 193 mm

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Parental Control

Time Scheduling, Safe Browsing, Customized Internet Schedule

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3, Guest Network Connection Time Limit

Security

AiProtection, VPN, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection

AiProtection, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard

Traffic Control

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, :// Maximum Bandwidth Limiter Rule : 32, Traditional QoS, :// Maximum Traditional QoS Rule : 32, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, 3G / 4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)

Wireless

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

USB application

4G / 5G Auto Mobile Tethering, File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove Disk, Download Master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

User Interface

WEB: ASUSWRT, APP: ASUS Router APP

Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
