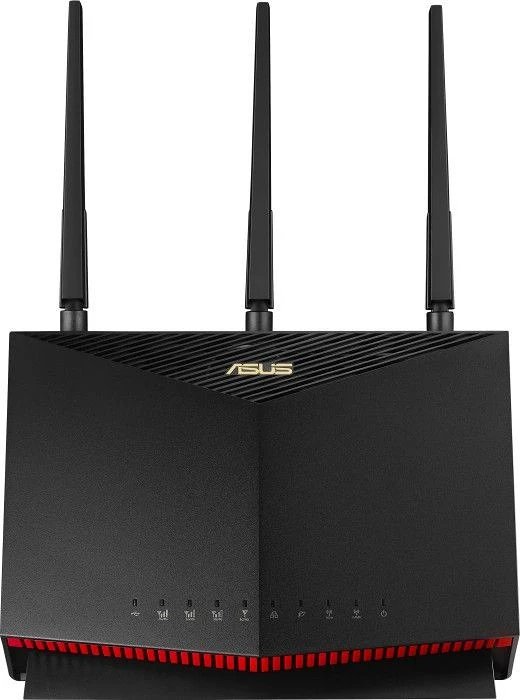

Asus 4G-AC86U
Ac2600 lte modem router black

Model

4G-AC86U

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
IEEE 802.11e
IEEE 802.11i
IPv4
IPv6

Product Segment

AC2600 ultimate AC performance : 800+1733 Mbps

WiFi Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) (256QAM) : up to 800 Mbps
WiFi 5 (802.11ac) : up to 1733 Mbps

Connectivity Technology

LTE Cat.12 : Downlink 600 Mbps / Uplink 150 Mbps
HSPA+: Downlink 42.2 Mbps / Uplink 5.76 Mbps
4G FDD-LTE: 1 /3 /5 /7 /8 /20 /28 /32
4G TDD-LTE: 38 /40 /41
3G UMTS: 1 /3 /5 /8

Antenna

Internal dual-band antenna x 3
External dual-band antenna x 1
External 3dBi antenna x 2 for Mobile

Memory

128 MB Flash
512 MB RAM

Operating Frequency

2.4 GHz / 5 GHz

Operating Mode

Modem Router, Access Point

I/O Ports

RJ45 for 10/100/1000 BaseT for LAN x 4, RJ45 for 10/100/1000 BaseT for WAN x 1
USB 2.0 x 1
Nano SIM slot x 1

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1
Wi-Fi x 2
WAN x 1
LAN x 1
Mobile WAN connection x 1
Mobile WAN signal x 3
USB x 1

Package Content

4G-AC86U Mobile Modem WiFi router
Nano SIM Tray
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g)

797

Product Dimensions

242 x 100 x 325

Parental Control

"Allow you to block access to unwanted websites and apps."
Customized Internet Schedule
Maximum Parental Control Profile : 16
Maximum Parental Control Content Filter Rule : 16

Guest Network

Support Guest Network
6
Guest Network Connection Time Limit

Security

WPS
SSH
Firewall
64
32

AiProtection

AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server Open VPN
VPN Server PPTP

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Maximum Traditional QoS Rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Traffic Analyzer
• Website History

WAN

Internet Connection Type : Mobile WAN, Ethernet WAN
Dual WAN
Port Forwarding
Maximum Port Forwarding Rule : 64
Port Triggering
Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay

LAN

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

Wireless

MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
Universal Beamforming
Explicit Beamforming

USB application

File System : FS_FAT16, FS_FAT32, FS_NTFS_3G, FS_ext2, FS_ext3, FS_ext4
HDD Hibernation
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges

User Interface

APP: ASUS Router APP

Administration

SMS Message
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
