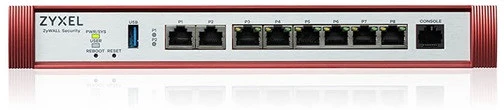

ZYXEL Tűztfal 1x2.5-GbE port + 6x1-GbE +1xPOE+ 1xUSB 3.0 + 1konzol port, USGFLEX200HP-EU0101F Hardware Specifications Interface ports 200H: 2 x 2.5-GbE Ethernet 6 x 1-GbE Ethernet ? 200HP: 1 x PoE+ Ethernet (802.3at, 30W max.) USB 3.0 ports 1 Console port Yes (RJ-45) Rack-mountable Yes Fanless Yes System Capacity & Performance*1 SPI firewall throughput (Mbps)*2 5,000 VPN throughput (Mbps)*3 1,200 IPS throughput (Mbps)*4 2,000 Anti-Malware throughput (Mbps)*4 1,500 UTM throughput (Anti-malware & IPS, Mbps)*4 1,500 Max. TCP concurrent sessions*5 600,000 Max. concurrent IPsec VPN tunnels*6 100 Recommended gateway-to-gateway IPsec VPN tunnels 50 Concurrent SSL VPN users 50 VLAN interface 32 Max. Concurrent devices logins*7 200 Security Service*8 Anti-Malware Yes IPS Yes Application Patrol Yes Web filtering Yes Reputation Filter Yes SecuReporter Yes Sandboxing Yes Device Insight Yes Secure WiFi*9 Yes Key Features VPN IKEv2, IPSec, SSL SSL (HTTPS) inspection Yes Two-Factor Authentication Yes Nebula Centralized Management Yes Power Requirements Power input 200H: 12V DC, 2A max. 200HP: 19V DC, 3.42A Max. power consumption (Watt Max.) 200H: 22 200HP: 62 Heat dissipation (BTU/hr) 200H: 58.75 200HP: 191.9 Physical Specifications Item Dimensions (WxDxH)(mm/in.): 272 x 187 x 36/10.7 x 7.36 x 1.42 ? Weight (kg/lb.): 200H: 1.52/3.34 200HP: 1.52/3.35 Packing Dimensions (WxDxH)(mm/in.): 427 x 247 x 73/16.81 x 9.72 x 2.87 ? Weight (kg/lb.): 200H: 2.43/5.36 200HP: 2.68/5.92 Included accessories Power adapter Power cord (200HP) RJ-45 - RS-232 cable for console connection Rack mounting kit (optional, by regions) Environmental Specifications Operating Temperature: 0°C to 40°C / 32°F to 104°F Humidity: 10% to 90% (non-condensing) Storage Temperature: -30°C to 70°C / -22°F to 158°F Humidity: 10% to 90%(non-condensing) MTBF (hr) 200H: 40°C/ 306768.409 hr 25°C/ 528037.0106 hr ? 200HP: 40°C/ 227747.9662 hr 25°C/ 392638.3847 hr Acoustic noise - Certifications EMC FCC Part 15 (Class B) CE EMC (Class B) RCM (Class B) BSMI Safety LVD (EN62368-1) BSMI
