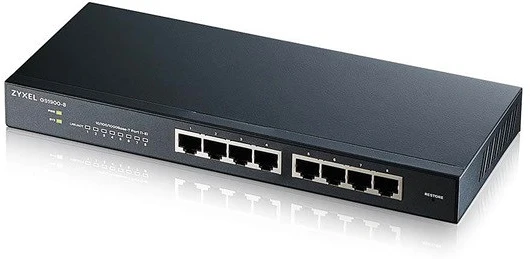

| ? | GS1900-8 | GS1900-8HP | GS1900-10HP | GS1900-16 |
|---|---|---|---|---|
| Product name | 8-port GbE Smart Managed Switch | 8-port GbE Smart Managed PoE Switch | 8-port GbE Smart Managed PoE Switch with GbE Uplink | 16-port GbE Smart Managed Switch |
| Port Density | ||||
| Total port count | 8 | 8 | 10 | 16 |
| 100/1000 Mbps | 8 | 8 | 8 | 16 |
| SFP 100/1000 Mbps | - | - | 2 | - |
| PoE | ||||
| 802.3at PoE ports | - | 8 | 8 | - |
| Total PoE budget (Watts) | - | 77 | 77 | - |
| Performance | ||||
| Switching capacity (Gbps) | 16 | 16 | 20 | 32 |
| Forwarding rate (Mpps) | 11.9 | 11.9 | 14.88 | 23.8 |
| Packet buffer (byte) | 525 K | 525 K | 525 K | 525 K |
| MAC address table | 8 K | 8 K | 8 K | 8 K |
| Jumbo frame (byte) | 9 K | 9 K | 9 K | 9 K |
| Power | ||||
| Input | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz |
| Max. power consumption (watt) | 5.0 | 84.8 | 95.3 | 10.2 |
| Physical Specifications | ||||
| Dimensions (WxDxH) (mm/in.) | 250 x 104 x 27/9.84 x 4.10 x 1.06 | 250 x 104 x 27/9.84 x 4.10 x 1.06 | 250 x 104 x 27/9.84 x 4.10 x 1.06 | 216 x 133 x 42/8.50 x 5.23 x 1.65 |
| Weight (kg/lb.) | 0.65/1.43 | 0.71/1.57 | 0.72/1.59 | 0.97/2.13 |
| Environmental Specifications | ||||
| Acoustic noise (min/max, dBA) | 0 |
|
|
