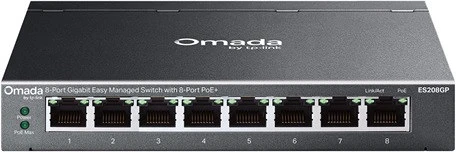

TP-LINK Switch 8x1000Mbps(8xPOE+) Fémházas Easy Smart (Omada), ES208GP HARDWARE FEATURES Interface
8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) Fan Quantity
Fanless Installation
• Desktop• Wall Mount Physical Security Lock
? Power Supply
DC Power Adapter (Output: 53.5V DC / 1.31A) PoE Ports (RJ45)
• Standard: 802.3af PoE and 802.3at PoE+ compliant• PoE Ports: 8 ports• PoE Budget: 64W available for all PoE+ ports, 30W max per port• Remote Camera Reboot? • Up to 820ft (250m) PoE transmission distance** Dimensions ( W x D x H )
6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) Surge Protection
Service port: ±6 kV PERFORMANCE Switching Capacity
16 Gbps Packet Forwarding Rate
11.904 Mpps MAC Address Table
8K Packet Buffer Memory
4 Mbit Jumbo Frame
15 KB SOFTWARE FEATURES Quality of Service
• 802.1p DSCP Priority• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control L2 Features
• Link Aggregation- Static Link Aggregation- Up to 2 aggregation groups and up to 4 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP L2 Multicast
• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave VLAN
• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID Transmission Method
Store and Forward Management Features Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management
• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller Management Features
• Web-based GUI• DHCP Client• Cable Diagnostics OTHERS Certification
FCC, CE, RoHS Package Content
• ES208GP• Power Adapter• Power Cord• Installation Guide• Rubber Feet Environment
• Operating Temperature: 0?~40? (32?~104?)• Storage Temperature: -40?~70? (-40?~158?)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing
