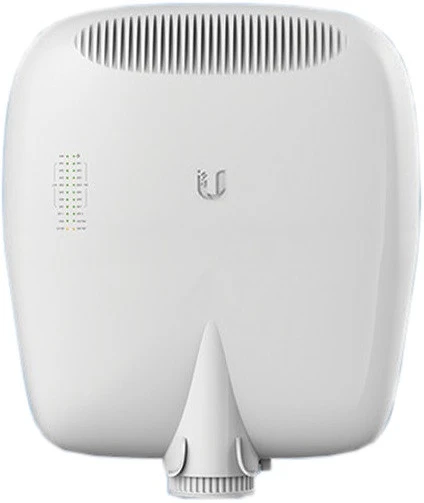

| EP-S16 | |
|---|---|
| Dimensions With Wall-Mount | 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50") 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15") |
| Weight With Wall-Mount | 3.4 kg (7.50 lb) 3.8 kg (8.38 lb) |
| Max. Power Consumption | 40W (Excludes PoE Output) |
| Power Input | (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs) |
| Power Supply | Min. 54V / 0.8A (Excludes PoE Output Power) |
| VDC Input | 54V / 6A |
| Passive PoE Input | (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 and 2 (Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.) |
| Passive PoE Output | (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 to 4 (12) 802.3af/at or 24V/0.7A, 2-Pair (+ 4, 5; - 7, 8) Passive PoE, Ports 5 to 16 |
| Power Monitoring | (1) DC Terminal Block, Input Power (2) RJ45, Ports 1 and 2, PoE Input or Output Power (14) RJ45, Ports 3 to 16, PoE Output Power |
| Supported Voltage Range | +42 to +56VDC (-48V is NOT Supported) |
| Button | Reset |
| LEDs System PoE In 1 to 16 SFP | Power PoE Speed/Link/Activity, PoE Speed/Link/Activity |
| Ports Serial Console Port Data Ports | (1) RJ45 Serial Port (16) 10/100/1000 RJ45 Ports (2) 1/10 Gbps SFP+ Ports |
| Pole/Wall Mount | Yes |
| Operating Temperature | -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
|
|
