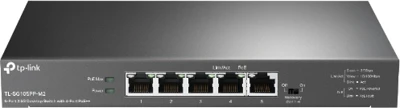

Tp-link TL-SG105PP-M2
Poe switch

TL-SG105PP-M2

New

5-Port 2.5G Desktop Switch with 4-Port PoE++

• 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
• With four PoE++ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at/bt type3 compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 60 W for each PoE++ port
• Supports PoE Power up to 123 W for all PoE ports *
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play, no configuration and installation required

HARDWARE FEATURES
Interface	• 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate	18.6 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at/bt type3 compliant • PoE++ Ports: Ports 1–4 • Power Supply: 123 W
Mac Address Table	4K
Switching Capacity	25 Gbps
Dimensions ( W x D x H )	8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption	• 7.57 W (220/50 Hz. no PD connected) • 143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation	• 25.81BTU/h (220 V/50 Hz with no PD connected) • 488.89 BTU/h (220 V/50 Hz with 123W PD connected)

SOFTWARE FEATURES
Advanced Features	• Compatible With IEEE 802.3af/at/bt type3 Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • PoE Auto Recovery (Ports 1-4)
Transfer Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SG105PP-M2 • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
