Számítástechnika / Hálózat, kommunkáció / Switch / Tp-link SG6428X

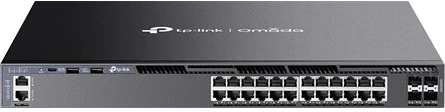

Tp-link SG6428X
Omada rack switch

770 337 Ft-tól, 803 900 Ft-ig, 2 ajánlat

Árfigyelés

Listába

TP-Link SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots

770 337 Ft

Tovább a bolthoz

TP-LINK Switch 24x1000Mbps + 4x10Gbps SFP+ +2xUSB + 1xkonzol port + 1xUSB-C Layer3 Menedzselhető Rackes, SG6428X

803 900 Ft

Tovább a bolthoz

LAN (1Gb/s): 24 port, USB2.0, USB-C: 1db, SFP+: 4db, menedzselhető, energiafelhasználás: 28,4W, szürkeLAN (1Gb/s): 24 port, USB2.0, USB-C: 1db, SFP+: 4db, menedzselhető, energiafelhasználás: 28,4W, szürkeGarancia: 5 Év

Schnittstelle	• 24× 10/100/1000 Mbps RJ45 Ports • 4× 10G SFP+ Slots • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port
Anzahl Lüfter	Four Internal Fixed Fans
Spannungsversorgung	Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Abmessungen (BTH)	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Montage	Rackmountable
Maximale Leistungsaufnahme	28.4 W (220 V/50 Hz)
Maximale Wärmeabgabe	96.91 BTU/hr (220 V/50 Hz)

PERFORMANCE
Switchingkapazität	128 Gbps per Unit
Stacking	• Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stack Bandwidth: Up to 80 Gbps (4 stack ports)
Paketweiterleitungsrate	95.2 Mpps
MAC-Adresstabelle	32 K
Paketpufferspeicher	3 MB
Jumbo-Frames	9 KB

SOFTWARE-FUNKTIONEN
Quality of Service	• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark)
Layer3-Funktionen	• IP Interfaces: - IPv4: Max 256, IPv6: Max 256 • Static Routing - Max 1,024, IPv6: Max 512 • Host Route Table: Max 6,100 entries • RIP: Version v1/v2, Max 8,190 • OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 • VRRP: Version v2/v3, Max 64 groups • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 7,680 dynamic entries • Proxy ARP • DHCP Server: - Max 8K IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN
Layer2- und Layer2+-Funktionen	• Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • Supports 2,048 IGMP groups • ERPS • Mirroring • RSPAN • MAC Address Table • PIM-DM (IPv4) • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast IP - Multicast Filtering
Erweiterte Funktionen	• Automatic Device Discovery ? • Batch Configuration ? • Batch Firmware Upgrading ? • Intelligent Network Monitoring ? • Abnormal Event Warnings ? • Unified Configuration ? • Reboot Schedule ? ISP Features : • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow
VLAN	• Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • VLAN VPN • Voice VLAN • Private VLAN
Sicherheit	• Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface...
