99.8*98*25mm
? PoE Ports ?RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
? External Power Supply ?External Power Adapter (Output: 53.5V/1.31A)
? Installation ?Desktop
Wall Mount
? Standards and Protocols ?IEEE 802.3x Flow Control
? Data Rates ?10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
9 KB
? Mac Address Table ?2K
? Max Power Consumption ?3.13W(220 V / 50 Hz, no PD connected)
75.15W(220 V / 50 Hz, with 65W PD connected)
? Max Heat Dissipation ?10.64 BTH/h (no PD connected)
255.51 BTH/h(with 65W PD connected)

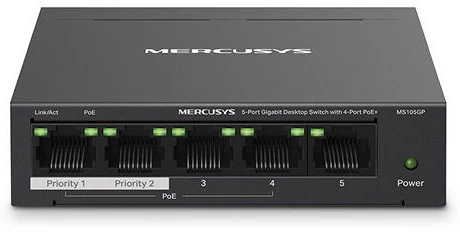

Hardware Package Contents ?• 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
• Power Adapter
• Quick Installation Guide
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
|
|
