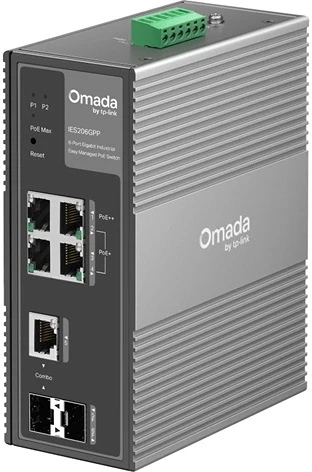

Tp-link IES206GPP
omada 6-port gigabit industrial easy managed switch with 3-port poe+ and 1

LAN (1Gb/s): 5 port, SFP: 2db, menedzselhető, energiafelhasználás: 120W, szürkeLAN (1Gb/s): 5 port, SFP: 2db, menedzselhető, energiafelhasználás: 120W, szürkeGarancia: 5 Év

HARDWARE FEATURES
Interface	• 1× 10/100/1000 Mbps PoE++ RJ45 Ports • 3× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• DIN-rail mounting • Wall mounting
Physical Security Lock	?
Power Supply	12-57V 1+1 Redundant DC Power Input
PoE Ports (RJ45)	• Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.0A - 21V / 3.5A)) - 120W (Input: 21V / 6.5A - 57V / 2.3A)
Dimensions ( W x D x H )	6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection	• ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports

PERFORMANCE
Switching Capacity	12 Gbps
Packet Forwarding Rate	8.93 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery ? • Batch Configuration ? • Batch Firmware Upgrading ? • Unified Configuration ?

OTHERS
Certification	FCC, CE, RoHS
Package Content	• IES206GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide
Environment	• Operating Temperature: -40?~75? (-40?~167?) • Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing
