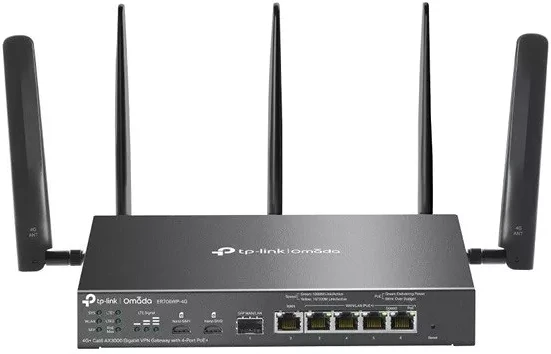

Tp-link 1XSFP + 1XSIM, ER706WP-4G nagyítás

Tp-link 1XSFP + 1XSIM, ER706WP-4G
vezetékes omada ax3000 vpn router 1xwan(1000mbps) + 4x1000mbps(poe+) +

131 290 Ft-tól, 131 290 Ft-ig, 1 ajánlat

Árfigyelés

Listába

TP-LINK Vezetékes Omada AX3000 VPN Router 1xWAN(1000Mbps) + 4x1000Mbps(POE+) + 1xSFP + 1xSIM, ER706WP-4G

131 290 Ft

Tovább a bolthoz

TP-LINK Vezetékes Omada AX3000 VPN Router 1xWAN(1000Mbps) + 4x1000Mbps(POE+) + 1xSFP + 1xSIM, ER706WP-4G 4G Network Type LTE Band of EU:• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8(2100/1800/850/900 MHz)Carrier Aggregation:B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41B3+B3/B5/B7/B8/B20/B28/B38/B40/B41B5+B5/B7/B38/B40/B41B7+B7/B8/B20/B28/B32B8+B32/B38/B40/B41B20+B32/B38/B40B28+B32/B38/B40/B41B38+B38B40+B40B41+B41 SIM Type 1× Nano SIM Card Frequency • Downlink: 300 Mbps;• Uplink: 50 Mbps BIZTONSÁG Hozzáférés-vezérlés Source/Destination IP Based Access Control Szűrés • Web Group Filtering? • URL Filtering• Web Security? ARP-s támadás elleni védelem • Sending GARP Packets• ARP Scanning? • IP-MAC Binding Hálózati támadások elleni védelem • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN HARDVER JELLEMZŐK Csatlakozások • 1 Gigabit SFP WAN/LAN Port• 1 Gigabit WAN Port• 4 Gigabit LAN/WAN Ports Hálózati összeköttetés • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) Gomb Reset Button Hálózati tápegység 12VDC / 2A Power Adapter Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160) Flash 128 MB NAND DRAM 512 MB DDR4 LED SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) Méretek (Sz x Mé x Ma) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are notincluded) Antenna • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas• LTE: Two 4.0dBi omnidirectional detachable antennas Felszerelés Desktop/Wall-Mounting Max. áramfelvétel EU: 17.3W MŰKÖDÉSI JELLEMZŐK GRE • Unencrypted: 545.3Mbps• Encrypted: 282.6Mbps WireGuard VPN 387.7Mbps Egyidejű munkamenet 150,000 New Sessions /Second 5,100 NAT (Static IP) 947.1Mbps / 940.1Mbps NAT(DHCP) 949.2Mbps / 941.1Mbps NAT(PPPoE) 942.6Mbps / 941.1Mbps NAT (L2TP) 875.4Mbps / 892.0Mbps NAT (PPTP) 881.2Mbps / 895.8Mbps IPsec VPN Throughput • ESP-SHA1-AES256: 652.2Mbps• ESP-SHA256-AES256: 654.4Mbps• ESP-SHA384-AES256: 646.5Mbps• ESP-SHA512-AES256: 670.5 Mbps OpenVPN 115.5Mbps L2TP VPN Throughput • Unencrypted: 990.0Mbps• Encrypted: 475.0Mbps PPTP VPN Throughput • Unencrypted: 1177.9Mbps• Encrypted: 177.4Mbps SSL VPN Throughput 122.5Mbps 66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate 81274 pps / 91275 pps VEZETÉK NÉLKÜLI JELLEMZŐK További funkciók • Seamless Roaming• Mesh (with EAP that supports Mesh)• OFDMA• Beamforming• MU-MIMO• Rate Limit: Based on SSID/Client• Airtime Fairness• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise• Multiple SSIDs: 16 in total (8 per radio) Vendéghálózat Support ALAPFUNKCIÓK WAN kapcsolati típus • Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP MAC klónozása Modify WAN Address DHCP • DHCP Server• DHCPv6 PD Server (only in Standalone Mode)• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP SMS Receive / Send SMS IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode HALADÓ FUNKCIÓK ACL IP/Port/Protocol/Domain Name Filtering Advanced Routing • Static Routing• Policy Routing• RIP? • OSPF? Sávszélesség-szabályozás IP-Based Bandwidth Control Load Balance • Intelligent Load Balance• Application Optimized Routing• Link Backup(Timing, Failover)• Online Detection NAT • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering? • NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP Session Limit IP-Based Session Limit VPN GRE Only in Standalone Mode SSL VPN 50 Tunnels IPsec VPN • 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) PPTP VPN • PPTP VPN Server• PPTP VPN Client (10)?• 50 Tunnels• PPTP with MPPE Encryption L2TP VPN • L2TP VPN Server• L2TP VPN Client (10)?• 50 Tunnels• L2TP over IPSec OpenVPN • OpenVPN Server• OpenVPN Client (5)?• 55 OpenVPN Tunnels• Certificate + Account Mode• Full Mode HITELESÍTÉS Webes hitelesítés • No Authentication• Simple Password§• Hotspot (Local User / Voucher§? / SMS§? / Radius§)• External Radius Sever• External Portal Sever§• LDAP VEZÉRLÉS Omada App Yes. Centralized Management • Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller Cloud Access Yes. Szolgáltatás Dy
