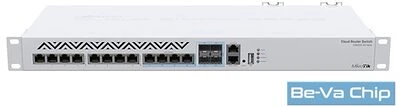

MikroTik CRS312-4C+8XG-RM

MikroTik Cloud Router Switch CRS312-4C+8XG-RM is the first managed MikroTik switch with 10G RJ45 Ethernet ports. It is equipped with 8 10G Ethernet and 4 10G Combo ports (10G Ethernet / SFP+).
CRS312-4C+8XG-RM gives access to up to 12 ports with 10 Gb/s throughput. The Combo ports allow for a connection via fiber optic cable, which extends the capabilities of the switch. The device has a switching capacity of 240 Gb/s , and the speed of packet transfer is 178 Mp/s . The device's 10G Ethernet ports support connection speed negotiation and can therefore be used at 1G, 2.5G, 5G or 10G speeds.

Two types of operating systems

Thanks to the Dual Boot function the user can select one of two operating systems in the device, RouterOS (Level 5) and SwitchOS . The first option has Layer3 functions, while the second one is characterized by simplicity of use, but is limited only to Layer2 .

The device is equipped with two AC power supplies

The switch has two built-in AC power supplies, which reduces the risk of connection interruption. It has a full-size USB port, a RJ45 console port for configuration and a 1U enclosure. The maximum power consumption of the switch is 60 W . This device is a practical solution for those who work with huge data files and need a fast, efficient 24/7 connection: multimedia production, research, game development, large data analysis and so on.

The most important features:

The most important features:

• Two built-in redundant AC power supplies
• QCA9531 processor, 650 MHz
• Packet transfer speed 178 Mp/s
• 240 Gb/s switching capacity
• Dual boot (SwitchOS or RouterOS Level 5)
• 4 10G Combo ports (10G Ethernet / SFP+)
• 8 10G Ethernet ports
• USB port
• 1U chassis suitable for 19" racks
