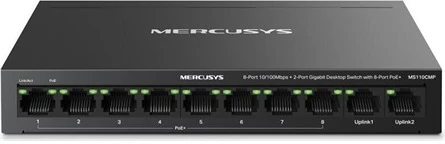

Mercusys MS110CMP
Poe switch

LAN (100Mb/s): 8 port, LAN (1Gb/s): 2 port, energiafelhasználás: 130,5W, feketeLAN (100Mb/s): 8 port, LAN (1Gb/s): 2 port, energiafelhasználás: 130,5W, feketeGarancia: 3 Év Standards and Protocols

IEEE 802.3x Flow Control

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 115 W

Dimensions

6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Interfaces

8× 10/100 Mbps Ports + 2× Gigabit Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 54V/2.2A)

Installation

Desktop / Wall Mount

Data Rates

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame

2 KB

Switching Capacity

5.6 Gbps

MAC Address Table

2K

Max Power Consumption

3.79W(220 V / 50 Hz, no PD connected)

130.49W(220 V / 50 Hz, with 115W PD connected

Max Heat Dissipation

12.92 BTH/h (no PD connected)

444.97 BTH/h(with 115W PD connected)

Others Package Contents

• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP)
• Power Adapter
• Quick Installation Guide

Environment

Operating Temperature: -10?~40? (14?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing

Hardware
