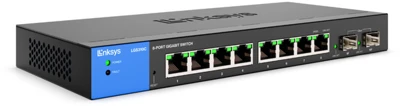

Linksys LGS310C-EU
Lgs310c switch

41 890 Ft-tól, 42 190 Ft-ig, 2 ajánlat

Árfigyelés

Listába

27156 Linksys LGS310C 8x GbE LAN 2x SFP GbE port L3 menedzselhető switch

41 890 Ft

Tovább a bolthoz

LGS310C-EU Linksys 8-Port Managed Gigabit Switch + 2 SFP Ports - Black

42 190 Ft

Tovább a bolthoz

Model Name:

LGS310C
Routing:

Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
Ports:
- 8 Gigabit Ethernet
- 2 Gigabit SFP
Memory:

256MB
LEDs:

Power, Fault
Forwarding Rate:

14.88 Mpps
Switching Capacity:

20 Gbps
MAC Address Table Size:

8K
Jumbo Frame (FE, GE):

8K
Dimensions (LxWxH):
- 240 x 105 x 27 mm
- (9.45 x 4.13 x 1.06 in)
Weight:

609 g (1.34 lb)
Power Consumption:

6.54W
Power Input:

12V/1A
Power Saving:

EEE
Operating Temperature:

0 to 50°C (32 to 122°F)
Storage Temperature:

0 to 50°C (32 to 122°F)
Operating Humidity:

10 to 90% RH
Storage Humidity:

5 to 95% RH (non-condensing)
Spanning Tree:

IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)

Link Aggregation:

IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
VLAN:

Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Number of VLANs Supported:

256 active VLANs (4,096 range)
Auto Voice VLAN:

Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping:

IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
HOL Blocking Prevention:

Head of line (HOL) blocking prevention
Port Mirroring:

Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Security Features:
- 802.1x Radius authentication
- DHCP snooping
- IP-MAC binding
- Port Security (256 max entries per port)
- DOS Attack Prevention
- Port Isolation (Protected Ports)
Storm Control:

Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
Quality Of Service:
- 8 hardware queues
- Strict, Weighted Round Robin (WRR)
- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
Access Control:

Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
RMON:

Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
Management Interface:
- HTTP
- HTTPS
Other Management:

Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
SNMP:
- Version 1
- Version 2c
- Version 3
Firmware Upgrade:

Web Browser (HTTP/HTTPS)
Rate Limiting:

Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
Warranty and Support:
- 5 Year Warranty (most countries)
- 2 Year Warranty (Australia and New Zealand)
