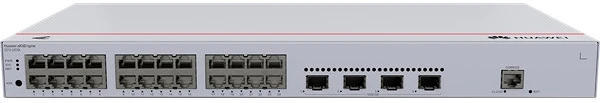

Huawei 24X1000MBPS + 4X10GE
Ekit switch s310-24t4x rack switch

LAN (1Gb/s): 24 port, soros port, SFP+: 4db, szürkeLAN (1Gb/s): 24 port, soros port, SFP+: 4db, szürkeGarancia: 3 Év

First supported version	V600R023C00
Integrated fixed device	Y
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1
Installation type	Rack mounting,Desk mounting,Wall mounting
Chassis material	Metal
Weight without packaging [kg(lb)]	2.32 (5.11)
Weight with packaging [kg(lb)]	3.44 (7.58)
Typical power consumption [W]	27.27
Typical heat dissipation [BTU/hour]	93.05
Maximum power consumption [W]	35.04
Maximum heat dissipation [BTU/hour]	119.56
Static power consumption [W]	19.00
100% power consumption [W]	27.27
MTBF [year]	70.75
MTTR [hour]	2
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	47
Noise at high temperature (acoustic power) [dB(A)]	51
Noise at normal temperature (acoustic pressure) [dB(A)]	35
Number of card slots	0
Number of power slots	0
Number of fans modules	1
Maximum number of physical ports on the entire device	28
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	4
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	28
Maximum number of FE ports	24
Uplink ports	4 x 10GE SFP+ ports
Downlink ports	24 x 10/100/1000BASE-T ports
Dedicated stack port	Not supported
