Számítástechnika / Hálózat, kommunkáció / Switch / D-link DGS-1510

D-link DGS-1510
Dgs-1510 vezérelt l3 gigabit ethernet (10/100/1000) fekete

179 066 Ft-tól, 179 066 Ft-ig, 1 ajánlat

Árfigyelés

Listába

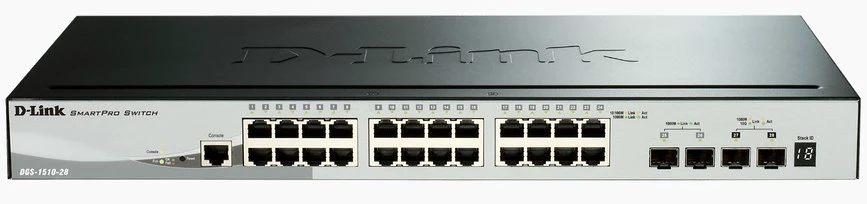

D-Link DGS-1510 Managed L3 Gigabit Ethernet (10/100/1000) Fekete switch

179 066 Ft

Tovább a bolthoz

Technical Specifications:

D-Link DGS-1510 Series Specifications
?	DGS-1510-20	DGS-1510-28	DGS-1510-28P	DGS-1510-28X	DGS-1510-52	DGS-1510-52X
General
Port Standards & Functions	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, 802.3ae 10 GbE, IEEE 802.3x Flow Control for Full-Duplex Mode, Auto-negotiation
Number of Ports: 10/100/1000 Mbps ? Gigabit SFP ? 10G SFP+	16 2 2	24 2 2	24 2 2	24 - 4	48 2 2	48 - 4
Network Cables	UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex	Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange	Auto or configurable MDI/MDIX
Performance
Switching Capacity	76 Gbps	92 Gbps	92 Gbps	128 Gbps	140 Gbps	176 Gbps
Transmission Method	Store-and-forward
MAC Address Table	16,000 entries per device
MAC Address Update	Up to 512 static MAC entries, Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate	56.54 Mpps	68.45 Mpps	68.45 Mpps	95.24 Mpp	104.16 Mpps	130.95 Mpps
Packet Buffer Memory	1.5 MB per device	1.5 MB per device	1.5 MB per device	1.5 MB per device	3 MB per device	3 MB per device
PoE
PoE Standard	-	-	IEEE 802.3af, 802.3at	-	-	-
PoE Capable Ports	-	-	Ports 1 to 24: Up to 30 W	-	-	-
PoE Power Budget	-	-	Max. 193 W	-	-	-
Physical & Environment
AC Input	100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption	20.3 W	24 W	238.7 W (PoE on), 29 W (PoE off)	22.3 W	38.4 W	44.2 W
Standby Power Consumption	11.4 W / 100V 12.2 W / 240V	14.6 W / 100V 15.2 W / 240V	22.7 W / 100V 21.0 W / 240V	14.6 W / 100V 15.2 W / 240V	27.3 W / 100V 27.6 W / 240V	28.6 W / 100V 28.9 W / 240V
Smart Fan Quantity	1	1	2	1	2	2
Acoustics	43.8 dB(A)	43.8 dB(A)	46.4 dB(A)	42.7 dB(A)	44.2 dB(A)	45.8 dB(A)
Heat Dissipation	41.6 BTU/hr	72.3 BTU/hr	814.0 BTU/hr	76.0 BTU/hr	130.9 BTU/hr	138.8 BTU/hr
Operation Temperature	23 to 122 °F (-5 to 50 °C)
Storage Temperature	-4 to 158 °F (-20 to 70°C)
Operation Humidity	0% to 95% non-condensing
Storage Humidity	0% to 95% non-condensing
Dimensions	11 x 7.09 x 1.73 in. (280 x 180 x 44 mm) 19” standard rack mounting width, 1U height	17.36 x 8.26 x 1.73 in. (440 x 210 x 44 mm) 19” std rack mtg width 1U height	17.36 x 9.84 x 1.73 in. (440 x 250 x 44 mm) 19” std rack mtg width 1U height
Weight	2.7 lbs (1.24 kg)	4.4 lbs (2.00 kg)	5.6 lbs (2.54 kg)	4.4 lbs (2.00 kg)	5.3 lbs (2.40 kg)	5.3 lbs (2.40 kg)
Diagnostic LEDs	Power/Stacking ID/Fan (per device), Link/Activity/Speed (per 10/100/1000 Mbps port), Link/ Activity/Speed (per Gigabit SFP port), Link/Activity/Speed (per 10G SFP+ port)
Certifications	CE, FCC, C-Tick, VCCI, BSMI, CCC
Safety	cUL, CB
Software Features
Stackability	Virtual Stacking Support D-Link Single IP Management Up to 32 devices per virtual stack Physical Stacking Supports Duplex Chain/Ring topology Up to 40G stacking bandwidth full duplex Up to 6 units per stack
L2 Features	MAC Address Table: 16K Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frame up to 9000 Bytes IGMP Snooping IGMP v1/v2 Snooping IGMP v3 awareness Supports 512 IGMP groups Supports 128 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier Host-based IGMP Snooping Fast Leave MLD Snooping Supports MLD v1/v2 awareness Supports 512 groups Supports 128 Static Multicast Addresses Per VLAN MLD Snooping Host-based MLD Fast Leave MLD Snooping Querier Spanning Tree Protocol 802.1D STP 802.1w RSTP 802.1s MSTP Loopback Detection 802.3ad Link Aggregation Max. 32 groups per device/8 ports per group Port Mirroring Support 4 mirroring groups One-to-One, Many-to-One Supports Mirroring for Tx/Rx/Both Multicast Filtering Forwards all unregistered groups Filters all unregistered groups LLDP, LLDP-MED
VLAN	802.1Q Tagged VLAN 4K VLAN Groups Configurable VID: 0~4094 GVRP Asymmetric VLAN Auto Voice VLAN Auto Surveillance VLAN
Quality of Service (QoS)	802.1p Quality of Service Queue Handling Strict Priority Queue (SPQ) Weighted Round Robin (WRR) Deficit Round Robin (DRR) SPQ + WRR 8 queues per port Bandwidth Control Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s) CoS based on 802.1p priority VLAN MAC address Ether type IP address DSCP Protocol type TCP/UDP port number DSCP of IPv6 Traffic Class IPv6 flow label
L3 Features	ARP 256 Static ARP Supports Gratuitous ARP IPv6 Neighbour Discovery (ND) 8 IP Interfaces Default Routing Static Routing 64 IPv4 Static Route Entries 32 IPv6 Static Route Entries
Access Control List (ACL)	ACL based on 802.1p priority VLAN MAC address Ether type IP address DSCP Protocol type TCP/UDP port number DSCP of IPv6 Traffic Class IPv6 flow label Permit Deny Max. 256 access list Max. 768 rules Single or multiple ports (each rule) Time-based ACL ACL Statistics
Security	Port Security Supports up to 128 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Dynamic ARP Inspection Static MAC D-Link Safeguard Engine DHCP Server Screening ARP Spoofing Prevention Max. 64 entries SSH Supports v2 Supports IPv4/IPv6 BPDU Attack Protection SSL Supports v1/v2/v3 Supports IPv4/IPv6 Traffic Segmentation IP-MAC-Port Binding DHCP snooping IP Source Guard Dynamic ARP inspection DHCPv6 Guard RA Guard IPv6 Snooping IPv6 Source Guard DoS Attack Prevention
AAA	Compound Authentication 802.1X Port and MAC-based Authentication Supports RADIUS and Local Server Supports EAP, OTP, TLS, TTLS, PEAP Web-based Access Control (WAC) Port-based Access Control Host-based Access Control Dynamic VLAN Assignment Guest VLAN MAC-based Access Control (MAC) Port-based Access Control Host-based Access Control Dynamic VLAN Assignment Japan Web-based Access Control (JWAC) Port-based Access Control Host-based Access Control Dynamic VLAN Assignment
OAM	Cable Diagnostics Factory Reset
Management	CLI Telnet Server TFTP Client IPv6 Neighbor Discovery Configurable MDI/MDIX SNMP Supports v1, v2c, v3 SNMP Trap System Log Max. 10,000 log entries DHCP Client D-Link Network Assistant support SNTP ICMPv6 IPv4/v6 Dual Stack DHCP Auto Configuration RMON v1 Debug Command Dual Image Web Based GUI
D-Link Green 3.0 Technology	Power Saving by: Link Status LED or Port Shutoff System Hibernation mode Time-based PoE (PoE model only)
