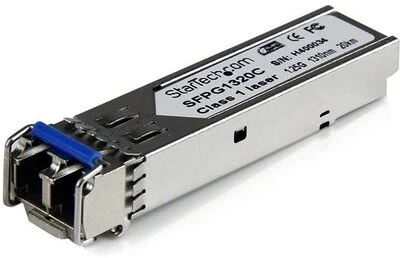

The SFPG1320C Cisco® Compatible Gigabit Fiber SFP Transceiver Module SM LC - 20 km (12.4 miles) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Single-Mode LC port on your Gigabit fiber networking equipment or fiber media converter.
Supporting data rates up to 1.25 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 1310nm single-mode SFP module is compatible with Cisco equipment.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Hardware | |
|---|---|
| Industry Standards | IEEE 802.3z 1000BASE-LH |
| WDM | No |
| Performance | |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| DDM | Yes |
| Fiber Operating Mode | Half/Full-Duplex |
| Fiber Type | Single Mode |
| Max Transfer Distance | 20 km (12.4 mi) |
| Maximum Data Transfer Rate | 1.25 Gbps |
| Wavelength | 1310nm |
| Connector(s) | |
| Local Unit Connectors | 1 - Fiber Optic LC Duplex Female |
| Special Notes / Requirements | |
| Note | For use in Gigabit fiber networking equipment and media converters |
| System and Cable Requirements | MSA or Cisco compliant SFP port |
| Environmental | |
| Humidity | 30~70% RH |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Physical Characteristics | |
| Product Height | 0.4 in [10 mm] |
| Product Length | 2.4 in [60 mm] |
| Product Weight | 0.6 oz [17 g] |
| Product Width | 0.5 in [12 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 1.7 oz [49 g] |
| What's in the Box | |
| Included in Package |
|
|
