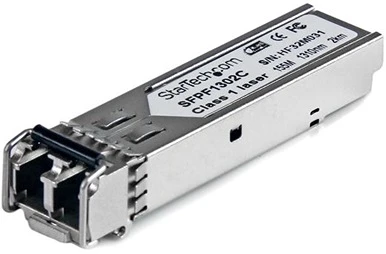

Startech SFPF1302C
Cisco compatible 100 mbps fiber transceiver 2km sfp modul

LAN (100Mb/s): 2 port, átviteli hatótávolság: 2000mLAN (100Mb/s): 2 port, átviteli hatótávolság: 2000m

The SFPF1302C Cisco® Compatible Fast Ethernet Fiber SFP Transceiver Module MM LC - 2 km (1.2 miles) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your 100 Mbps fiber networking equipment or fiber media converter.

Featuring data rates of up to 155 Mbps and support for Digital Diagnostics Monitoring (DDM), this LC SFP module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering convenience and scalability, the fiber transceiver is fully hot-pluggable, enabling you to install the module without interrupting network traffic or requiring a device reboot.

This 1300nm multi-mode SFP module is compatible with the Cisco GLC-FE-100FX transceiver.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

• Fully compliant with MSA standards, this hot-pluggable module can be installed into any networking device that features an MSA compliant or Cisco compliant port
• Equipped with an industry standard multimode LC interface, this module can extend your network connectivity up to 2 km

Hardware
Industry Standards	IEEE 802.3u 100BASE-FX
WDM	No
Performance
Compatible Networks	100 Mbps
DDM	Yes
Fiber Operating Mode	Half/Full-Duplex
Fiber Type	Multi Mode
Max Transfer Distance	2 km (1.2 mi)
Maximum Data Transfer Rate	155 Mbps
Wavelength	1300nm
Connector(s)
Local Unit Connectors	1 - Fiber Optic LC Duplex Female
Special Notes / Requirements
Note	For use in 100 Mbps fiber networking equipment and media converters
System and Cable Requirements	MSA or Cisco compliant SFP port
Environmental
Humidity	30~70% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 85°F)
Physical Characteristics
Product Height	0.6 in [14 mm]
Product Length	2.6 in [65 mm]
Product Weight	0.9 oz [25 g]
Product Width	0.4 in [9 mm]
Packaging Information
