Extralink 3KM, LC, DOM
Sfp 1.25g | sfp wdm module | 1,25gbps, 1310/1550nm, single mode, 3km, lc, dom, pair

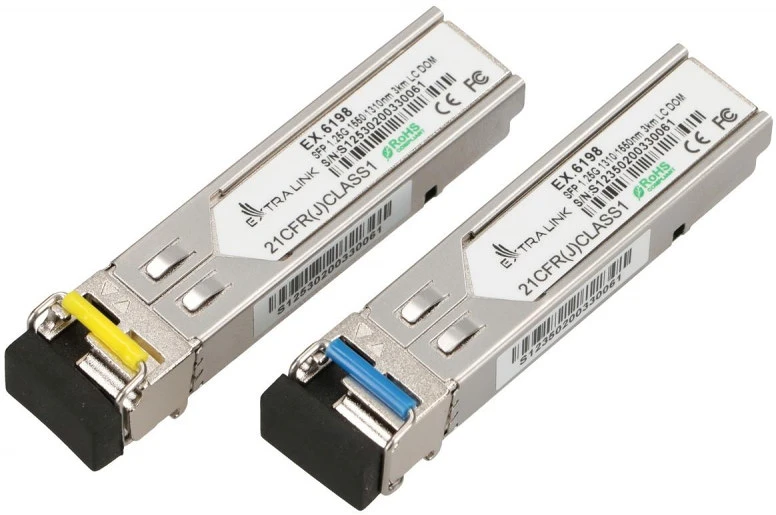

Pair of high speed modules SFP 1.25G WDM 1310/1550NM SM 3KM LC

Extralink SFP 1.25G WDM are high-performance, economical single-mode SFP modules supporting a data transfer rate of 1.25 Gbps/1.0625 Gbps and a transmission range of 20 km with SMF. The SFP fiber optic insert consists of three sections, i.e. the FP laser transmitter, the PIN photodiode integrated with the transimpedance preamplifier (TIA) and the MCU control unit. All modules meet Class I laser safety requirements. The fiber optic SFP modules are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472 .

Extralink SFP 1.25G WDM with wide range of applications

SFP fiber optic inserts are used in Gigabit Ethernet, fiber channels, switch to switch, switched backplane applications, router/server interfaces and other optical transmission systems.

Special features

Special features

• Dual data rate 1.25 Gbps/1.063 Gbps
• FP 1310 nm laser and PIN photodetector for transmission up to 3 km
• Compatible with SFP MSA and SFF-8472 with double LC socket
• Digital diagnostic monitoring - internal or external calibration
• Compatibility with SONET OC-24-LR-1
• RoHS Compatibility
• Single power supply +3.3 V
