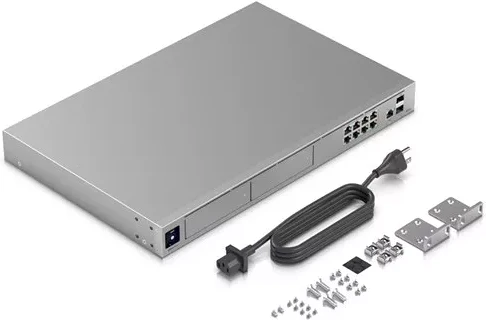

Ubiquiti 8X1000MBPS + 1X10GBPS SFP+ + 1X2,5GBPS
Router Dream Machine Pro Max

UBiQUiTi Router Dream Machine Pro Max 8x1000Mbps + 1x10Gbps SFP+ + 1x2,5Gbps, Menedzselhető, Rackes - UDM-PRO-MAX Technical Specifications Mechanical Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2) Weight 4.7 kg (10.4 lb) Enclosure material Aluminium CNC, SGCC steel Mount material SGCC steel Hardware Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz System memory 8 GB DDR4 On-board storage 32 GB eMMCIntegrated 128 GB SSD Management interface EthernetBluetooth Networking interface LAN:(8) GbE RJ45 ports(1) 10G SFP+ portWAN:(1) 2.5 GbE RJ45 port(1) 10G SFP+ port IDS/IPS throughput 5 Gbps**Measured with iPerf3. Power method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz(1) USP-RPS DC input, 11.5V DC, 8.7A Power supply AC/DC, internal, 100W Supported voltage range 100—240V AC Max. power consumption 100W ESD/EMP protection Air: ± 15kV, contact: ± 8kV LCM display (1) 1.3 touchscreen Button Factory reset Ambient operating temperature -10° to 40° C (14° to 104° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Gateway Features Performance Redundant WAN with failover and load balancingWiFi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationAdditional internet failover with LTE BackupInternet quality and outage reporting Next-generation security Application-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewall Advanced networking License-free SD-WANWireGuard, L2TP and OpenVPN serverOpenVPN clientOpenVPN and IPsec site-to-site VPNOne-click Teleport and Identity VPNPolicy-based WAN and VPN routingDHCP relayCustomizable DHCP serverIGMP proxyIPv6 ISP support LEDs Ethernet Green: link/activity SFP+ Green: link/activity HDD White: disk activityAmber: disk error RPS Blue: ready
