Extralink 12U 600X600 AZH BLACK

Extralink 12U 600X600 AZH BLACK
12u 600x600 azh black | rackmount cabinet | wall mounted, swing type

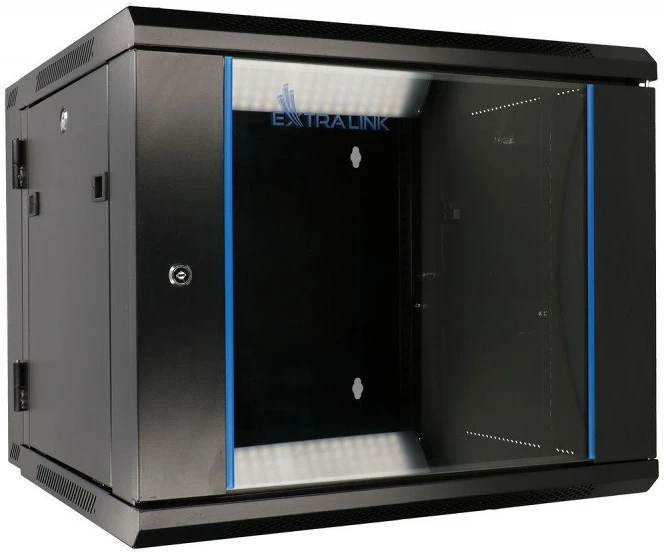

EXTRALINK 12U 600X600 AZH two-section rack cabinet

The Extralink rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The cabinet's walls are made of cold-rolled steel sheet, while the front doors are made of tempered glass with the possibility of opening to the left or right side. The two-section construction facilitates access to the installed components from the back.

Clearly marked height

Vertical rails have a corresponding height designation, which is 12U (unit) . The total height of the cabinet is 64 cm .

Easy removal of side walls

Snap fasteners on the side walls allow for their disassembly. Locks and keys are included .

Ceiling adapted to the installation of fans

On the ceiling of the cabinet there are 2 places to install fans for better cooling of the devices and 2 additional passages for pulling out cables.

Wardrobe construction:

Features:

Features:

• Standard 19'' mounting, welded frame, reliable design
• The frame structure is prepared for self-assembly, thus it is easy to move and transport, reducing shipping costs
• Standing/Wall Mounting
• Easy installation (patent)
• Removable side panels
• Holes for cable entry on both the top cover and the bottom panel
• Tempered glass front door, rotation angle exceeds 180 degrees
• Two-sectional construction
