Extralink 12U 600X450 BLACK
12u 600x450 black | rackmount cabinet | wall mounted

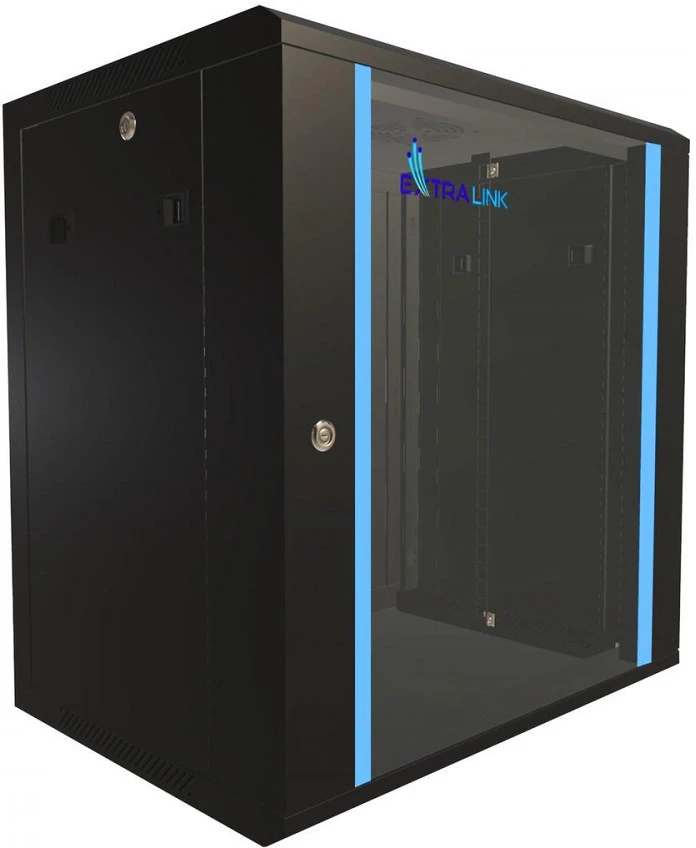

Black EXTRALINK rack - 12U, 600 × 450

Extralink rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. External walls are made of cold rolled steel sheet. Equipped with tempered glass front door can open to left or right side.

Clearly marked cabinet height

The vertical rails are marked with the corresponding height, which is 12U (from unit) , while the total height of the cabinet is 64 cm .

Easy disassembly of side walls

The latches on the side walls allow for removal. Locks and keys are included .

Cabinet ceiling with possibility of installing fans

On the ceiling of the cabinet there are 2 places for installing fans for better cooling of the devices, there is also an additional pass-through for cables.

Cabinet construction - drawing

Main features

Main features

• Standard 19'' mounting, welded frame, reliable construction
• Self-assembly frame design - easy to move and transport, reducing shipping costs
• Wall or upright mounting
• Easy installation (patent)
• Removable side panels
• Cable entry holes on both top cover and bottom panel
• Tempered glass front door with a rotation angle of more than 180 degrees
