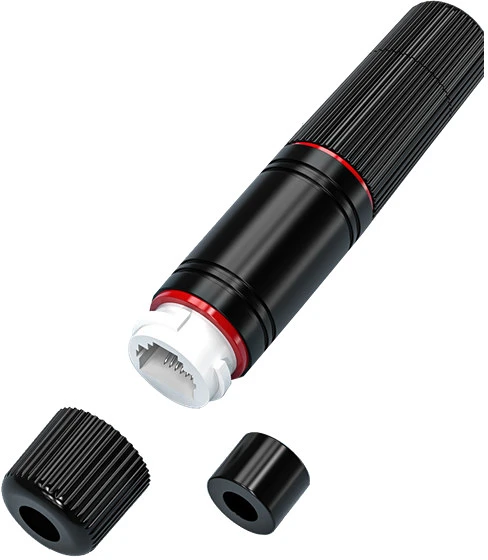

Connector Type Category Cat 6 Connector 2x RJ45(8P8C) Female Ports Shielding Unshielded Material Housing Material Polycarbonate + Nylon Waterproof Joint Contact Material Phosphor Bronze, Stamped Pin, Thickness = 0.35mm Contact Surface Material Gold Plating, thickness = 0.5U (0.5μin or 0.0127 µm) Electrical Properties Voltage/Current Rating 125 VAC / 1.5 A Insulation Resistance ≥ 1000 MΩ Contact Resistance ≤ 100 mΩ at 500 VDC Dielectric Strength 750 VAC RMS, 60Hz, 1 minute Mechanical Properties Durability ≥ 750 mating cycles Wire Gauge AWG 22-26 Environment Operating Temperature -40°C to 70°C Operating Humidity RH 10% to 90% (non-condensing) Storage Temperature -40°C to 80°C Storage Humidity RH 5% to 96% (non-condensing) General Dimension O20x118 mm (Diameter x Length) Net Weight 29 g
