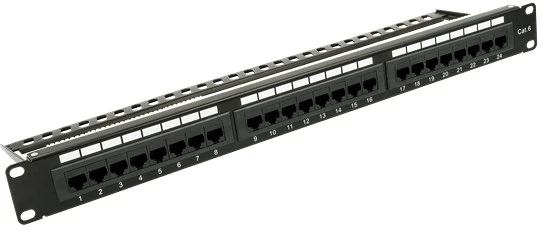

Connector Type Category Cat 6 Shielding Unshielded Connector 3*8 x RJ45 Jacks IDC Type Dual (110 & Krone) Material Housing Material PBT IDC Material PC Contact Jaw: Phosphor Bronze with Tin Plating, thickness = 0.8 mm Contact Material Phosphor Bronze with Nickel Plating, thickness = 0.45 mm Contact Surface Material Gold Plating, thickness = 1U (1μin or 0.0254µm) PCB Material FR-4, thickness = 1.6 mm Panel Frame Carbon Steel, Powder-Coated in Black, SPCC 1.5 mm Electrical Properties Voltage/Current Rating 125 VAC RMS / 1.5 A Insulation Resistance ≥ 1000 MΩ at 500 VDC Contact Resistance ≤ 100 mΩ Dielectric Strength 750 VAC RMS, 60Hz, 1 minute Mechanical Properties RJ45 Jack ≥ 750 mating cycles IDC Lifespan ≥ 250 termination cycles Wire Gauge AWG 22-26 Wiring Scheme T568A/T568B Environment Operating Temperature -25°C to 70°C Operating Humidity RH 10% to 90% (non-condensing) Storage Temperature -40°C to 85°C Storage Humidity RH 5% to 96% (non-condensing) General Installation Rack Mount, Standard 19-inch Dimension 482.6 (19") x 44.45 (1U) x 121 mm (WxHxD) Net Weight 670 g Gross Weight 780 g
