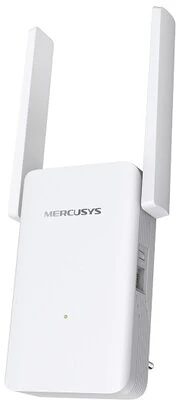

Mercusys ME70X
Ax1800 dual-band wi-fi range extender

1775Mb/s, IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6), LAN (1Gb/s): 1 port, antennák száma: 2db, energiafelhasználás: 13W, fehér1775Mb/s, IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6), LAN (1Gb/s): 1 port, antennák száma: 2db, energiafelhasználás: 13W, fehérGarancia: 3 Év Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz

Frequency

2.4GHz and 5GHz

WiFi Speeds

574 Mbps at 2.4GHz, 1201 Mbps at 5GHz

Reception Sensitivity

5GHz:
11ax HE80 MCS0:-88 dBm ;
11ax HE80 MCS11:-58 dBm
11a 6Mbps:-94 dBm;
11a 54Mbps:-76 dBm
11ac VHT80 MCS0:-91dBm;
11ac VHT80 MCS9:-63dBm;

2.4GHz:
11ax HE40 MCS0:-93 dBm ;
11ax HE40 MCS11:-63 dBm
11g 6Mbps:-95 dBm;
11g 54Mbps:-77 dBm
11n HT40 MCS9:-72dBm;

Wireless Security

WEP, WPA, WPA2, WPA3-PSK

Wireless Dimensions

138.6 × 100.3 × 68.4 mm

Interfaces

1 Gigabit Ethernet Port

Button

WPS / Reset Button

Antenna Type

2× External Antennas

Power Consumption

13W

Hardware Certifications

RoHS

Package Contents

Wi-Fi Range Extender ME70X
Quick Installation Guide

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing

Others
