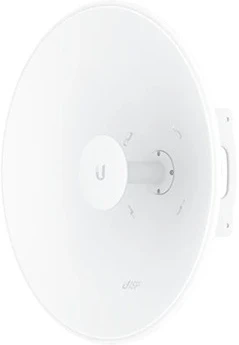

Ubiquiti UISP-DISH
, uisp dish

Point-to-point (PtP) dish antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

The UISP® Dish is a high-gain PtP antenna that provides ample coverage by utilizing a wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber® 5XHD Radio (AF 5XHD) or airMAX® Rocket Prism® AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Dish also has a latch on each side for secure, snap-in radio connection.

Features:

Notes:? Compatible with the ? AF 5XHD ? and? RP 5AC .
Operation frequency may vary based on regional radio frequencies and regulations.

• • Frequency range: 5.15 - 6.875 GHz
  • 30+ km PtP link range
  • Precision mounting bracket for easy installation and alignment
  • Two side latches for secure, snap-in radio connection

• Mechanical
  Dimensions	O 650 x 200 mm (O 25.6 x 7.9")
  Weight	Device: 4.54 kg (10 lb) Mount: 3.1 kg (6.8 lb)
  Enclosure materials	Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy
  Wind survivability	Up to 200 km/h (124 mph)
  Wind loading	860 N at 200 km/h
  Mounting	Alignment mounting kit (included) Mechanical adjustment: ±15° elevation Pole compatibility: O40 to 90mm (O1.57 to 3.5")
  Weatherproofing	IPX6
  Hardware
  Frequency range	5.15 to 6.875 GHz
  Gain	30 dBi
  Beamwidth	Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
  Electrical downtilt	0°
  Maximum VSWR	2:1
  Polarization	Dual-linear
  Cross-pol isolation	20 dB
