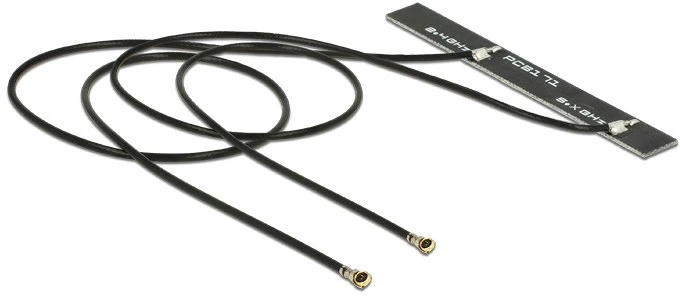

Garancia: 4 Hónap Leírás This WLAN twin antenna is designed to integrate into devices with MHF IV connectors. These are two separate antennas with common ground.
Muszaki adatok
• Connectors: 2 x miniature RF coaxial plug MHF IV (IPEX), MXHP32 (HSC) compatible
• Frequency range:
2400 - 2500 MHz
5150 - 5875 MHz
• Antenna gain: 5 dBi
• Impedance: 50 Ohm
• Cable type: coaxial
• Cable attenuation:
3.20 dB @ 2.4 GHz per meter
5.05 dB @ 5.0 GHz per meter
• Cable diameter: ca. 1.13 mm
• Cable length incl. connectors: ca. 250 mm
• Operating temperature: -10 °C ~ 50 °C
• Dimensions (LxWxH): ca. 61.6 x 7.0 x 1.6 mm
Rendszerkövetelmények
• Device with two free MHF IV connectors
A csomag tartalma
• Antenna
Csomag
• Poly bag
