Delock 88984
Mhf/u.fl-lp-068 twin antenna

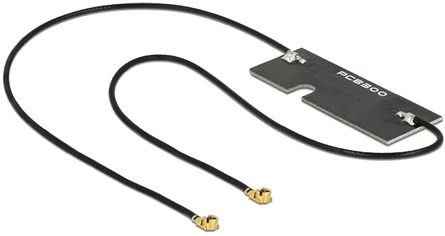

1db, 5dBi, antenna, WLAN eszközhöz1db, 5dBi, antenna, WLAN eszközhöz  This  twin WLAN antenna you can integrate into your devices with two MHF / U.FL compatible  connections to receive and send signals. These are two separate antennas with common ground.  One is responsible for 2.4Ghz and the other  is responsible f or 5.xGHz .

Specification
• PCB twin WLAN antenna internal
• Connectors: 2x miniature RF coaxial connector MHF (I-PEX), U.FL (Hirose) compatible
• Cable length: 2x 150 mm
• Cable diameter: 1.13 mm
• Cable type: coax
• Frequency range: 2400 ~ 2500 MHz
                                5150 ~ 5820 MHz
• Gain: 3 ~ 5 dBi
• Operating temperature: -10 °C ~ 55 °C
• Dimensions (LxWxH): 38.20 x 13.50 x 1.60 mm

System requirements
• A device with free MHF (I-PEX), U.FL (Hirose) compatible connector.

Package content
• PCB antenna

Package
• Poly bag
