3dBi, antenna, UMTS;WLAN eszközhöz3dBi, antenna, UMTS;WLAN eszközhöz
Description

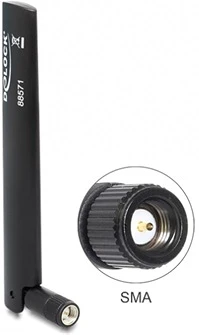

This LTE antenna can be connected to your LTE device with SMA connector in order to receive or to send a signal.
Specification
• LTE Band 1/2/3/7/8/13/17/20
• 1920 ~ 2170 MHz(1), peak gain 1,7 ~ 2,3 dBi
• 1710 ~ 1880 MHz (3), peak gain 1,8 ~ 3,0 dBi
• 2500 ~ 2690 MHz (7), peak gain 2,0 ~ 2,7 dBi
• 880 ~ 960 MHz (8), peak gain 0,6 ~ 0,5 dBi
• 746 ~ 787 MHz (13), peak gain 0,3 ~ 0,9 dBi
• 704 ~ 746 MHz (17), peak gain 0,3 ~ 0,7 dBi
• 791 ~ 862 MHz (20), peak gain - 0,8 ~ 0,2 dBi
• GSM
• UMTS
• WLAN 2,40 GHz
• Bluetooth
• SMAplug screw interface
• With flexible joint
• Polarization: linear, vertical
• Impedance: 50 Ohm
• Operating temperature: -10 °C ~ 55 °C
• ABS UV resistant
• Dimension: with flexible joint 135.00 mm
without flexible joint 107.00 mm
• Ø: 19.00 mm (top)
10.20 mm (base SMA)
Package content
• Antenna
Package
• Poly bag
