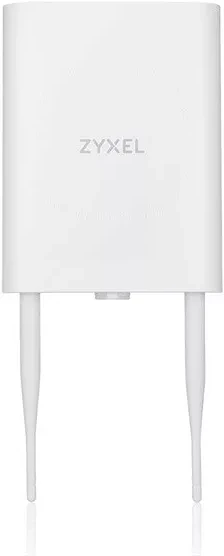

Zyxel NWA55BE-EU0102F
Wireless Access Point Dual Band BE5100 (WiFi 7) Falra rögzíthető Kültéri

ZYXEL Wireless Access Point Dual Band BE5100 (WiFi 7) Falra rögzíthető Kültéri, NWA55BE-EU0102F Wireless Standard IEEE802.11 be/ax/ac/n/g/b/a MIMO MU-MIMO Wireless speed 2.4GHz: 688Mbps 5GHz: 4324Mbps Frequency band 2.4GHz: USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz ? 5GHz: USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Bandwidth 20-, 40- ,80-, 160- and 240-MHz Conducted typical transmit output power*1 US (2.4GHz/5GHz): 25/26dBm ? EU (2.4GHz/5GHz): 16/26dBm RF Design Antenna type 2 detachable 2.4/5GHz external antenna Antenna gain 2.4GHz: 2dBi, 2x2:2SS ? 5GHz: 3dBi, 2x2:2SS Minimum receive sensitivity Min. Rx sensitivity up to -99 dBm WLAN Feature Band steering Yes WDS/Smart Mesh*2 Yes Wireless Bridge Yes Fast roaming Pre-authentication, PMK caching and 802.11r/k/v DCS Yes Load balancing No Advanced cellular coexistence Yes Security Encryption WEP WPA WPA2 WPA3 Authentication IEEE 802.1X RADIUS authentication Access management L2-isolation MAC filtering Rogue AP detection Networking IPv6 Yes VLANs Yes WMM Yes U-APSD Yes Management Operating mode Cloud managed Standalone ZON Utility Discovery of Zyxel switches, APs and gateways Centralized and batch configurations: IP configuration IP renew Device reboot Device locating Web GUI access Firmware upgrade Password configuration Web UI/CLI Yes SNMP No Physical Specifications Item Dimensions (WxDxH)(mm/in.) 308 x 136.4 x 49.6 / 12.13 x 5.37 x 1.95 Weight (g/lb.) 575.6 / 1.27 Packing Dimensions (WxDxH)(mm/in.) 221 x 188 x 59 / 8.70 x 7.40 x 2.32 Weight (g/lb.) 984.5 / 2.17 Included accessories PoE injector Mounting screws MTBF (hr) 631,165 Physical Interfaces Ethernet port 1 x 1/2.5GbE LAN Power PoE (802.3at): power draw 24W PoE modes IEEE 802.3af: Not supported IEEE 802.3at: Unrestricted IEEE 802.3bt: Unrestricted Environmental Specifications Weather Protection IP55 Operating Temperature -25°C to 65°C / -13°F to 149°F Humidity 10% to 90% (non-condensing) Storage Temperature -40°C to 70°C / -40°F to 158°F Humidity 10% to 90% (non-condensing) Certifications Radio FCC Part 15C FCC Part 15E FCC Part 2.1091 ETSI EN 300 328 EN 301 893 Draft EN 303 687 EN 50385 EN 50665 EN IEC 62311 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55032 EN55035 EN61000-3-2/-3 EN60601-1-2 BSMI CNS15936 Safety EN 62368-1 IEC 62368-1 BSMI CNS15598-1
