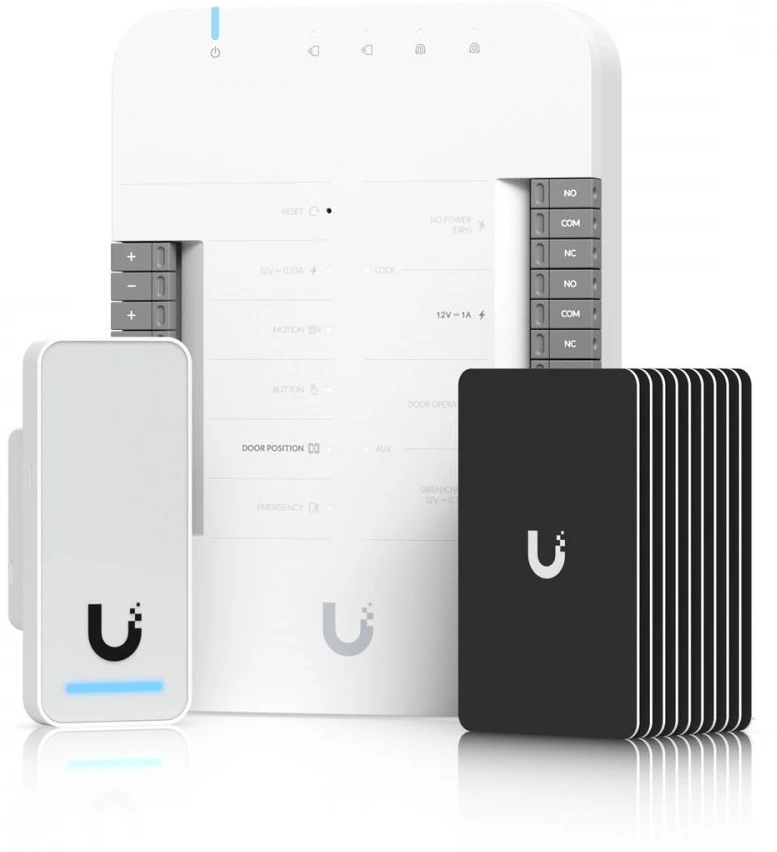

(1) UniFi Access Door Hub (1) Access Reader G2 (10) UniFi Access Cards, smart home(1) UniFi Access Door Hub (1) Access Reader G2 (10) UniFi Access Cards, smart home
Technical Specifications
UA-Hub-Door Mechanical
Dimensions
174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Weight
363 g (12.8 oz)
Enclosure material
Polycarbonate
Mounting material
Polycarbonate
Hardware
Networking interface
(5) 10/100/1000 Base-T
Power method
PoE++ UL 294 Power-limited Class 2 PSU UL 60950/62368 LPS/PS2 PSU
Max. power consumption
Without PoE output: 30W With PoE output: 50W
PoE input
50V DC, 1A
PoE output
PoE passthrough, (4) PoE, 50V DC, total 20W
Button
(1) Factory-reset
LEDs
System: white/blue Output relays: white
Digital input
Request to exit/request to enter/remote release/door position sensor
Dry output relay
Lock: 30V DC, 1A Aux: 30V DC, 1A
Powered output relay
Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
Operating environment
Indoor use only
Operating temperature
0 to 40° C (32 to 104° F)
Operating humidity
5 to 95% noncondensing
UL 294 level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 statement
Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: 1
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Hub-Door002, V01
Wiring Information
Typical installation (Shielded)
DC power input
Belden 8750 18 AWG 2 conductor (30.5 m/100 ft)
Door position switch
Belden 8750 18 AWG 2 conductor (152.5 m/500 ft)
Request to exit
Belden 8750 18 AWG 2 (152.5 m/500 ft)
Wiring gauge requirements (AWG)
Total length to device
Output load current at 12V DC
100mA
250mA
500mA
1A
6.1 m (20 ft)
22
22
22
18
15.2 m (50 ft)
22
22
22
18
30.5 m (100 ft)
22
22
18
18
PoE cabling requirements
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
