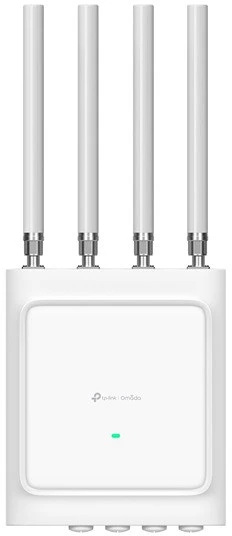

TP-LINK Wireless Access Point Dual Band AX3600 Kültéri/Beltéri, EAP668-OUTDOOR HD HARDWARE FEATURES Interface
1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+ Button
Reset Power Supply
802.3at/bt PoE Max. Power Consumption
802.3bt:• EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)• US: 25.4W (bt type3: af PSE out; bt type4: at PSE out);802.3at:• EU: 20.2W (PSE disabled)• US: 25.4W (PSE disabled)Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input. Dimensions ( W x D x H )
9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit) Antenna
4× External Dual-Band Omni Antennas• 2.4 GHz: 6.0 dBi• 5 GHz: 6.0 dBi Bluetooth
Yes Weatherproof Enclosure
IP68 Mounting
Wall/pole mouting (kits included),supporting horizontal ±45° adjustment• Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment• Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment(Note: Optional bracket accessories need to be purchased separately) WIRELESS FEATURES Concurrent Clients
1,000+* Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax Frequency
5 GHz, and 2.4 GHz Signal Rate
• 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 1148 Mbps Wireless Functions
• 1024-QAM• Mesh§• Seamless Roaming(802.11k/v/r)§• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Automatic Channel Assignment (Adjust transmit Power on dBm)• Transmit Power Control• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDs:16 (8 for each band)• MU-MIMO (4 × 4 MU-MIMO DL/UL)• UL/DL OFDMA• Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP Wireless Security
• VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication• Maximum number of MAC Filter: 4,000• Wireless Isolation between Clients• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power
• CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);• FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3) Management Features Omada App
Yes Restore & Backup
Yes Firmware update via Web
Yes NTP
Yes Centralized Management
• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller Cloud Access
Yes. Require the use of an Omada controller. Email Alerts
Yes LED ON/OFF Control
Yes Management MAC Access Control
Yes SNMP
v1, v2c, v3 SSH
Yes Web-based Management
Yes OTHERS Certification
CE, FCC, RoHS Package Content
• EAP668-Outdoor HD• 4× External Dual-Band Omni Antennas• Installation Guide• Mounting Kit• Waterproof Kit Environment
• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing
