Chipset ID | Marvell - 88SA8052 |
Performance | |
---|---|
Maximum Data Transfer Rate | 133MB/sec |
Connector(s) | |
Connector Type(s) | 1 - IDE (40 Pin; EIDE/PATA) |
1 - SATA Data & Power Combo (7+15 pin) | |
1 - SP4 (4 pin; Small Drive Power) | |
Software | |
OS Compatibility | OS independent; No software or drivers required |
Special Notes / Requirements | |
System and Cable Requirements | An IDE controller and ATA cable (not included). |
Environmental | |
Humidity | 15~90% RH |
Operating Temperature | 5°C to 50°C (40°F to 122°F) |
Storage Temperature | -25°C to 80°C (-13°F to 176°F) |
Physical Characteristics | |
Product Height | 0.9 in [23 mm] |
Product Length | 3 in [75.5 mm] |
Product Weight | 0.5 oz [15 g] |
Product Width | 0.8 in [20 mm] |
Packaging Information | |
Shipping (Package) Weight | 2.8 oz [80 g] |
What's in the Box | |

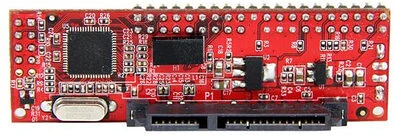

Included in Package | 1 - IDE to SATA adapter |
1 - LP4 Molex to SP4 Power Cable | |
1 - Instruction Manual |
![]() |
