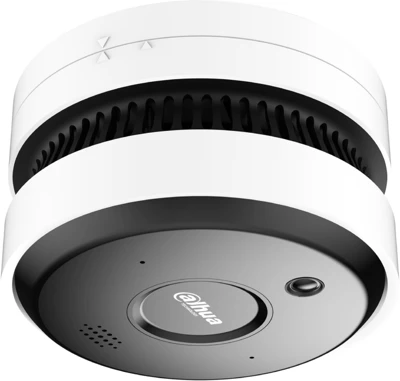

Dahua HY-SAV849HA-E
wisualarm, beépített füstérzékelő/tűzjelző; 5mp, 2mm, beltéri, h265+

Technical Speci?cation

Smoke Detector

Model DHI-HY-SAV849HA-E

Communication 1 RJ-45 PoE 10M/100M Ethernet ports

Indicators

Standby: Green indicator flashes once per

minute

Fault: Red indicator flashes once per minute

Alarm: Red indicator flashes once per second

Protection Area 30 m 2 –60 m 2

Operating Principle Photoelectric

Alarm Method Sound and LED Indicator

Power DC12V / PoE and 3V lithium battery

Operating Current

≤30uA (Camera excluded)

≤300mA (Camera included)

Back-up Battery Life 3–5 years

Operating Temperature –10°C to +55°C (+14°F to +131°F)

Operating Humidity 0%–95% RH (non-condensing)

Alarm Classification

Smoke alarm, fault alarm, undervoltage

alarm

Alarm Sound Pressure ≥80 dB (A) @ 3 m (9.84 ft)

Dimensions φ120 mm × H67 mm (4.72" × 2.64" )

Weight 420 g (0.93 lb)

Installation Ceiling mount

Network Camera

Image Sensor 1/2.7" CMOS

Focal Length 2.0 mm

Field of View Horizontal: 146.4°; Vertical: 179.6°

Max. Resolution 5 MP

ROM 256 MB

RAM 512 MB

Day/Night Auto (ICR)

Noise Reduction 3D NR

WDR True WDR

S/N Ratio >56 dB

AGC Auto; manual

White Balance Auto; manual

BLC Yes

HLC Yes

Compression H.265; H.264; H.264H; H.264B

Video Bit Rate

H.264: 32 Kbps–10240 Kbps

H.265: 12 Kbps–7168 Kbps

Frame Rate

50Hz:

Main stream (2688 × 1520@25 fps/2688 ×
1520@25 fps/2304 × 1296@25 fps)

Sub stream (704 × 576@25 fps/(704 ×
576@25 fps/(704 × 576@25 fps)

Third stream(704 × 576@25 fps/1920 ×
1080@14 fps/1920 × 1080@25 fps)

60Hz:

Main stream (2688 × 1520@30 fps/2688 ×
1520@30 fps/1280 × 720@30 fps/1920 ×
1080@30 fps)

Sub stream (704 × 480@30 fps/704 ×
480@30 fps/704 × 480@30 fps)

Third stream

(1920 × 1080@25 fps/704 × 480@30

fps/1920 × 1080@30 fps)

L:W 16:9

Max. Frame Rate 2592 × 1944@20 fps

Bit Rate Control Variable/Constant

Default Frame Rate under Default

Resolution

4096 Kbps (2592 × 1944)

Language English

Alarm Linkage Smoke alarm

Special Auto WDR at night

Image Setting

Brightness; contrast; sharpness; saturation;

gamma

OSD

Channel/time/place/voltage of back-up

battery

Image rotation, mirroring, flipping Yes

Recording Mode Recording manually or linked with alarm

Storage FTP; SFTP; Micro SD card (256G); NAS

Network Port 1 10M/100M Ethernet port (RJ-45)

User 10 channels at most

Reset Yes

Browser

IE7 and newer versions

Chrome 8+

Firefox 3.5+

Safari 5+

User Management

Support 32 users at most and users are

classified as multiple groups

Alarm Input Interface 2 channels In: 5mA 5VDC

Alarm Output Interface 2 channels Out: 300mA 12VDC

Security

Authorized username and password;

attached MAC address; encrypted HTTPS;

IEEE 802.1X; controlled network access

Protocol

HTTP;TCP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DH

CP;DNS;DDNS;IPv4/v6;SNMP;QoS;UPnP;NTP

Interoperability ONVIF; MileStone; Genetec; CGI; PISA

Power Supply DC12V+PoE

Ingress Protection IP30
