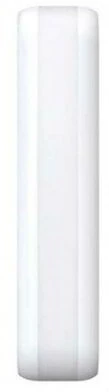

Hikvision DS-PDC10DM-EG2-WE
Ax pro érzékelő -

• · Slim design for window frame installation
• · IP65 weather resistance for outdoor application
• · Active IR anti-masking
• · Directional detection support
• · Multiple enrollment methods and easy installation
• · Frequency hopping against jamming for reliable transmission

Available models:

DS-PDC10DM-EG2-WE

• Detection MethodPassive Infrared;Microwave
• Detection Range

  Wall Mount：10m

  Ceiling Mount：5m

• Detection Angle5°
• Detection Zones32
• Detectable Speed0.3～2m/s
• SensitivityAuto;Pet
• White Light Filter6500lux
• Microwave Frequency24GHz(24.15～24.25GHz)
• Pet Immunity

  Wall Mount：12Kg

  Ceiling Mount：None

• Digital Temperature CompensationSupport
• Creep Zone ProtectionSupport
• Anti-maskingSupport

• Feature
• Digital ProcessingSupport
• Sealed OpticsSupport
• Tamper ProtectionFront;Rear
• Environment Temperature IndicatorSupport
• Signal Strength IndicatorSupport
• Directional DetectionSupport

• Interface
• Power SwitchPower Up Enrolling
• LED IndicatorGreen(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm)

• Transmission
• Transmission TechnologyTri-X Wireless
• Transmission MethodTwo-Way RF Wireless
• Transmission Frequency868MHz
• Transmission SecurityAES-128 Encryption
• Transmission Range(Free Space)1.6Km
• Frequency HoppingSupport
• Enrolling MethodPower up;Remote ID;QR Code

• Electrical Characteristics
• Standard Battery LifeUp to 5 years (standby time)
• Power SupplyBattery Powered
• Battery TypeCR123A × 2
• Typical Voltage3V

• General
• Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
• Storage Temperature-25 °C to 60 °C (-13 °F to 140 °F)
• Operation Humidity10% to 90%
• IP RateIP65
• Dimension(WxHxD)29.2mm × 134.4mm × 39.5mm
• Weight120g
• Mounting Height2 to 3.5m
• Mounting MethodWall;Ceiling
• Application ScenarioIndoor,Outdoor
• BracketL-shaped adapter included
