Tp-link C340
Vigi c340 (6mm) 4mp outdoor full-color bullet network camera

4MPOutdoorFull-ColorBulletNetworkCamera SPEC:H.265+/H.265/H.264+/H.264,1/3"ProgressiveScanCMOS,Color/0.04Lux@F1.6,0LuxwithIR/WhiteLight,25fps/30fps(2560x1440,2304x1296,2048x1280,1920x1080),PoE/12VDC,6FixedLens,Built-InMic,Speaker,MicroSDSlot FEATURE:Full-ColorandIRNightVision(Upto30m),ActiveDefense,Two-WayAudio,On-BoardStorage,SmartDetection(MotionDetection(HumanTargetsClassification),CameraTampering,Line-Crossing,AreaIntrusion),SmartVid(SmartIR,DWDR,3DDNR,BLC),IP66,ONVIF,RemoteMonitoring,VIGIApp

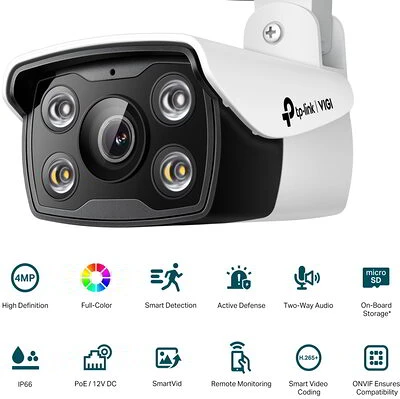

VIGI 4MP Outdoor Full-Color Bullet Network Camera

• 4MP Super-High Definition : The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color : Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio : Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement : VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• IP67 Waterproof: Reliable IP67 for stable outdoor performance.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• Flexible Management and Storage : Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Lens	Fixed focal lens (2.8 mm / 4 mm / 6 mm)
Aperture	2.8 mm: F1.6 4 mm: F1.6 6 mm: F1.6
Lens Mount	M12
Viewing Angle	2.8mm Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6° 4mm Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2° 6mm Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°
Day/Night Mechanism	IR Cut Filter
IR Working Distance	30m
Minimum Illumination	Color: 0.005 Lux; 0 Lux with IR/white light
Weatherproof Rating	IP67
Digital Noise Reduction	3D DNR
WDR	DWDR

NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network Storage	NAS (NFS, SMB/ CIFS)
API	Open Network Video Interface (Profile S)
Simultaneous Live View	Up to 6 Channels
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
ONVIF	Yes

GENERAL
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Operating Temperature	-30–60 °C
Dimensions( H X W X D )	78 × 70 × 174 mm
Certifications	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Material	Plastic
Weight	195g
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Power Consumption	12V DC: Max 7.5W PoE: Class 0

ILLUMINATOR
IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
White LED	Quantity: 2 Range: 30m

VIDEO/IMAGE
Video Compression	Main stream: H.265+/H.265/H.264+//H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Frame Rate & Resolutions	Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Max. Resolution	2560 X 1440
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Day/Night Switch	Day/Night/Auto/Schedule-Switch
Privacy Mask	Up to 4 Masks

SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Linkage Method	N/A
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Output Notification	Message Push

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Audio Output	N/A
Alarm	N/A
Button	Reset Button
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes
Built-in Speaker	Yes
