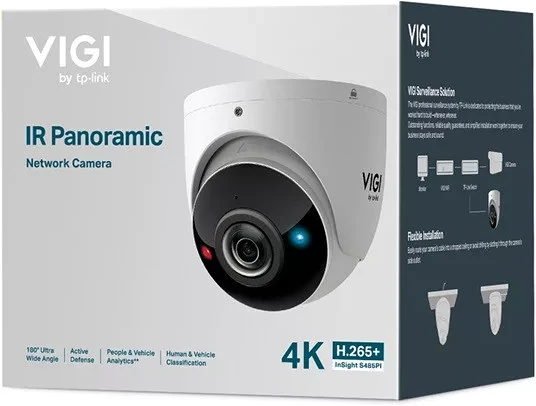

Tp-link S485PI
IP Kamera kültéri színes éjjellátó 8 Megapixel, 180 Fokos Panoráma

TP-LINK IP Kamera kültéri színes éjjellátó 8 Megapixel, 180 Fokos Panoráma nézet IR, INSIGHT S485PI CAMERA Image Sensor 1/2.7“ Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Minimum Illumination 0.005 Lux; 0 Lux with IR light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto LENS Type Fixed Focal Lens Focal Length 1.65 mm Aperture F2.0 FOV 1.65mm:• Horizontal FOV: 180°• Vertical FOV: 86°• Diagonal FOV: 180° Lens Mount M12 DORI Distance 1.65mm• Detect: 144.36 ft (44 m)• Observe: 60.15 ft (18.33 m)• Recognize: 28.87 ft (8.8 m)• Identify: 14.44 ft (4.4 m) Angle Adjustment (Manual) Range Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° ILLUMINATOR IR LED Quantity: 4Range: 65.62 ft (20 m)Wavelength: 850 nm Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 3840x2160 Main Stream • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720Note:• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:848x480,704x576, 640x480, 640x360,352x288, 320x240• Note:If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile H.265+ Main Stream Supported Video Bit Rate Main Stream: 256 Kbps to 8 MbpsSub-Stream: 64 Kbps to 1024 Kbps Image Image Settings • Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range 120 dB SNR ? 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 4 Region OSD Setting Yes AUDIO Audio Communication Two-Way Audio Audio Input Built-in MicrophoneAudio In Interface Audio Output Built-in SpeakerAudio Out Interface Audio Compression Yes Audio Sampling Rate 8 KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) NETWORK Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP ONVIF Yes API Open Network Video Interface (Profile S/T/G) Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS Web Browser Google Chrome® 57 and aboveFirefox® 52 and aboveSafari® 11 and aboveMicrosoft® Edge 91 and above Cloud Yes Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication ALARM AND EVENT MANAGEMENT Smart Event • Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login)• Alarm Input Device Alarm Linkage • Memory Card Video Recording• Upload to FTP Server• Alarm Output Device• Push Notifications• Send to Alarm Server• Active Defence-Sound Alarm• Active Defence-Light Alarm• Email Alarm Deep Learning Function People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3 INTERFACES Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE Alarm 1 Alarm In, 1 Alarm OutRed-Blue Warning Lights Reset Button Yes Power DC Power Port On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5 Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera Built-in Speaker Yes Audio 1 Audio In, 1 Audio Out GENERAL Operating Temperature -30 to 60 °C Storage Temperature -40 °C to 60 °C Operating Humidity 95% or Less (Non-condensing) Storage Humidity 95% or Less (Non-condensing) Package Contents VIGI Network CameraQuick Start GuideWaterproof Cable AttachmentsMounting Accessories Material Metal Net Weight 0.76 Kg Power Supply • 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, class 4, Max. 21 W Protection IP67 Waterproof, IK10 Vandal Proof Product Dimensions (L x W x H) 4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm) Certifications CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
