Tp-link IP67, H265+, IR30M, POE

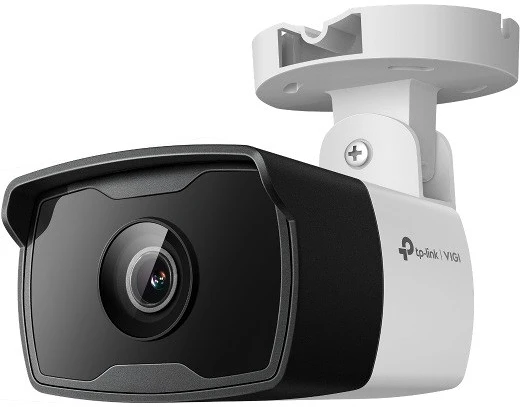

Ip csőkamera - c320i (2mp, 2,8mm, kültéri ip67, h265+, ir30m, poe)

TP-Link IP csőkamera - C320I (2MP, 2,8mm, kültéri IP67, H265+, IR30m, PoE) Kamera Képérzékelő 1/3” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Aperture 2.8 mm: F2.2 4 mm: F2.0 6 mm: F2.0 Optika 2.8 mm/ 4 mm/ 6 mm Lens Mount M12 Min. szükséges megvilágítás Color: 0.1 Lux; 0 Lux with IR Day/Night Mechanism IR Cut Filter Day/Night Switch Day/Night/Auto/Schedule-Switch Digital Noise Reduction 3D DNR WDR DWDR Weatherproof Rating IP67 IR Working Distance 30m Látószög 2.8mm: 88.2°/48.7°/106.5°(H/V/D) 4mm: 74.6°/41.3°/88.1°(H/V/D) 6mm: 47.7°/26.5°/56°(H/V/D) LENS Type Fixed Focal Lens Focal Length 2.8 mm/4 mm/6 mm Aperture 2.8 mm: F2. 2 4 mm: F2.0 6 mm: F2.0 FOV 2.8 mm: Horizontal FOV: 88.2°, Vertical FOV: 48.6°, Diagonal FOV: 106.5° ? 4 mm: Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1° ? 6 mm: Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56° Lens Mount M12 DORI Distance 2.8 mm: Detect: 45 m (149 ft) Observe:19 m (62 ft) Recognize: 9 m (30 ft) Identify: 5 m (15 ft) ? 4 mm: Detect: 60 m (198 ft) Observe: 25 m (83 ft) Recognize: 12 m (40 ft) Identify: 6 m (20 ft) ? 6 mm: Detect: 91 m (297 ft) Observe: 38 m (124 ft) Recognize: 18 m (59 ft) Identify: 9 m (30 ft) Angle Adjustment (Manual) Range Pan: -90° to 90° Tilt: -90° to 90° ILLUMINATOR IR LED Quantity: 2 Range: 30m Wavelength: 850nm White LED N/A Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 1920 × 1080 Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps ? Resolution: 1920x1080, 1280x960, 1280x720 ? Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps ? Resolution: 704x576, 640x480, 352x288, 320x240 ? Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 H.264 Type Main Profile/High Profile H.264+ Main Stream Supported H.265 Type Main Profile H.265+ Main Stream Supported Video Bit Rate Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps Image Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range DWDR SNR ? 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes Hang Hangkommunikáció N/A Hangbemenet N/A Hangkimenet N/A Hangtömörítés N/A Audio Sampling Rate N/A Environment Noise Filtering N/A Audio Bit Rate N/A Hálózat Szabvány TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS ONVIF Yes API ONVIF Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, VIGI NVR Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above Cloud Yes Biztonság Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Network Storage NAS (NFS, SMB/ CIFS) Figyelmeztetési és eseménykezelési vezérlés Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login) Alarm Linkage Message Push Linkage Method N/A Output Notification Message Push Fizikai kezelőfelület Hálózati csatlakozás 1 RJ45 10/100M Self-Adaptive Ethernet Port Alarm N/A Reset Button N/A Power DC Power Port Gomb - Video Output - On-board Storage N/A Built-in Microphone N/A Built-in Speaker N/A Audio N/A Általános Operating Temperature -30–60 °C Storage Temperature -40–60 °C Operating Humidity 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Csomagolás tartalma VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories Méret (Ma x Sz x Mé) 174 × 74 × 71 mm Material Plastic General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Net Weight 0.2 Kg Gross Weight 0.35 Kg Power Consumption PoE: Class 0 Power Supply PoE (802.3af/at, class 0) Protection IP67 Product Dimensions (L x W x H) 73× 174 × 71 mm Certifications CE/BSMI/VCCI/ONVIF Videó/Kép Videó tömörítés Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 Kép frissítés (frame) és felbontás Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1920x1080, 1280x960, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Max. Resolution 2MP (1920 × 1080) Videótovábbítás Main Stream Sub-Stream Képbeállítás Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement BLC/3D DNR/HLC/SmartIR Video Bit Rate 64 Kbps to 4 Mbps Day/Night Switch Day/Night/Auto/Schedule SMART FEATURE-SET Smart Event Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection Basic Event Motion Detection, Camera Tampering Detection, Exception (Illegal Login) Linkage Method Trigger Notification: ONVIF, HTTPS Region of Interest 1 RegionA termék adatokat harmadik fél bocsátja rendelkezésünkre tájékoztatási céllal. Az esetleg előforduló tartalmi hibákért nem tudunk felelősséget vállalni.
