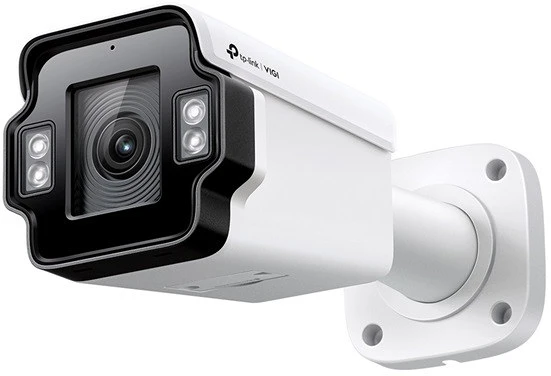

Tp-link INSIGHT S345ZI
ip kamera kültéri színes éjjellátó 4 megapixel, 5x optikai zoom motoros

TP-LINK IP Kamera kültéri színes éjjellátó 4 Megapixel, 5x Optikai Zoom Motoros Varifokális IR, INSIGHT S345ZI Kamera Képérzékelő 1/2.9” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Min. szükséges megvilágítás 0.005 Lux; 0 Lux with IR Light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto LENS Type Motorized Varifocal Lens Focal Length 2.7-13.5 mm (5X Optical Zoom) Aperture F1.6 FOV 2.7-13.5 mm: • Horizontal FOV: 29.6°-102.0° • Vertical FOV: 16.8°-53.8° • Diagonal FOV: 34.1°-122.8° Lens Mount Φ14 DORI Distance 2.7-13.5 mm: • Detect: 66-207 m (217-579 ft) • Observe: 28-86 m (92-282 ft) • Recognize: 13-41 m (43-135 ft) • Identify: 7-21 m (23-69 ft) Angle Adjustment (Manual) Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° ILLUMINATOR IR LED • Quantity: 4 • Range: 60m (197ft) • Wavelength: 850nm Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 2688 x 1520 Main Stream • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile H.265+ Main Stream Supported Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 512 Kbps to 1024 Kbps Image Image Settings • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range 120 dB SNR ≥ 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes Hang Hangkommunikáció Two-Way Audio Hangbemenet Yes Hangkimenet Yes Hangtömörítés Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) Hálózat Szabvány TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP ONVIF Yes API Open Network Video Interface (Profile S/T/G) Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS Web Browser • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above Cloud Yes Biztonság Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Figyelmeztetési és eseménykezelési vezérlés Smart Event • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) Alarm Linkage • Memory Card Video Recording • Message Push • Audible Warning • Email Alarm • Upload Capture to FTP • Alarm Out Device Linkage Method N/A Output Notification • Message Push • Email Alarm • Upload Capture to FTP Fizikai kezelőfelület Hálózati csatlakozás 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE Alarm 1 Alarm In, 1 Alarm Out Reset Button Yes Power DC Power Port On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera Built-in Speaker N/A Audio 1 Audio In, 1 Audio Out Általános Operating Temperature -30–60 °C Storage Temperature -40–60 °C Operating Humidity 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Csomagolás tartalma • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories Material Metal Net Weight 1.04 Kg Power Supply • 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max.12 W Protection IP67 Weatherproof, IK10 Vandal Proof Product Dimensions (L x W x H) 10.1 × 3.9 × 4 in (256 × 100 × 101 mm) Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
