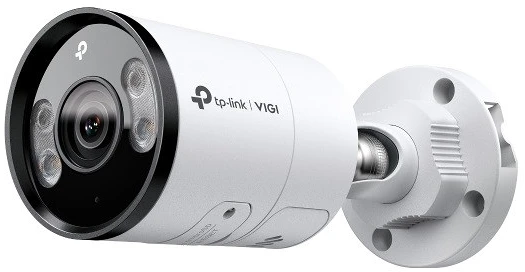

Tp-link INSIGHT S345(2.8MM
ip csőkamera - insight s345 (fullcolor, 4mp, 2,8mm, ip67, h265+, led+ir30m

TP-Link IP csőkamera - InSight S345 (FullColor, 4MP, 2,8mm, IP67, H265+, LED+IR30m, 12VDC/PoE, SD; mikr., hangsz.; fém) CAMERA Image Sensor 1/2.7” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Minimum Illumination 0.005 Lux; 0 Lux with IR/White light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto LENS Type Fixed Focal Lens Focal Length 2.8/4/6 mm Aperture F1.6 FOV • 2.8 mm: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° ? • 4 mm: Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7° ? • 6 mm: Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8° Lens Mount M12*P 0.5 DORI Distance • 2.8 mm Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft) ? • 4 mm Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) ? • 6 mm Detect: 120 m (394 ft) Observe: 50 m (164 ft) Recognize: 24 m (79 ft) Identify: 12 m (39 ft) Angle Adjustment (Manual) Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° ILLUMINATOR IR LED • Quantity: 2 • Range: 30m • Wavelength: 850nm White LED • Quantity: 2 • Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 2688 x 1520 Main Stream • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps ? • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 ? • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps ? • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 ? • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile* H.265+ Main Stream Supported* Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps Image Image Settings • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range 120 dB ? Note: When People & Vehicle Analytics is enabled, only DWDR is supported. SNR ? 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes AUDIO Audio Communication Two-Way Audio Audio Input Yes Audio Output Yes Audio Compression Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) NETWORK Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP ONVIF Yes API ONVIF Profile S/T/G Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS Web Browser • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above Cloud Yes Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication ALARM AND EVENT MANAGEMENT Smart Event • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) Alarm Linkage • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing Linkage Method N/A Output Notification Message Push Deep Learning Function People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§ INTERFACES Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE Alarm N/A Reset Button Yes Power DC Power Port On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera Built-in Speaker Yes Audio N/A GENERAL Operating Temperature -30–60 °C Storage Temperature -40–60 °C Operating Humidity 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Package Contents • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories Material Metal Net Weight 0.525 Kg Power Supply • 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 10.7 W Protection IP67 Product Dimensions (L x W x H) 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm) Certifications CE, NTRA, VCCI, KC, BSMI, FCC, ICA termék adatokat harmadik fél bocsátja rendelkezésünkre tájékoztatási céllal. Az esetleg előforduló tartalmi hibákért nem tudunk felelősséget vállalni.
