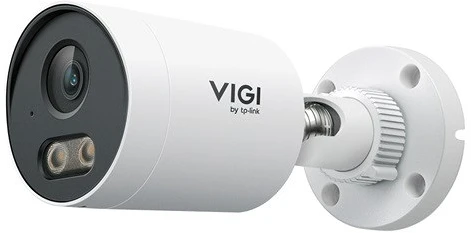

Tp-link INSIGHT S325(2.8MM)
Ip kamera kültéri színes éjjellátó 2 megapixel, 2.8mm objektív,

TP-LINK IP Kamera kültéri színes éjjellátó 2 Megapixel, 2.8mm Objektív, INSIGHT S325(2.8MM) CAMERA Image Sensor 1/3” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Minimum Illumination 0.005 Lux; 0 Lux with IR/White light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto LENS Type Fixed Focal Lens Focal Length 2.8/4/6 mm Aperture F2.0 FOV • 2.8 mm: Horizontal FOV: 98.8°, Vertical FOV: 53.5°, Diagonal FOV: 117° • 4 mm: Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3° • 6 mm: Horizontal FOV: 59.8°, Vertical FOV: 27.6°, Diagonal FOV: 57.7° Lens Mount M12*P 0.5 DORI Distance • 2.8 mm Detect: 16.4 ft (5 m) Observe: 29.5 ft (9 m) Recognize: 62.3 ft (19 m) Identify: 154.2 ft (47 m) • 4 mm Detect: 193.6 ft (59 m) Observe: 82 ft (25 m) Recognize: 39.4 ft (12 m) Identify: 19.7 ft (6 m) • 6 mm Detect: 292 ft (89 m) Observe: 121.4 ft (37 m) Recognize: 59.1 ft (18 m) Identify: 29.5 ft (9 m) Angle Adjustment (Manual) Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° ILLUMINATOR Illuminator On/Off Control Auto/Scheduled/Always on/Always off Integrated Infrared-White LED • Quantity: 2 • IR Range: 98 ft (30 m) • White LED Range: 98 ft (30 m) • IR Wavelength: 850 nm VIDEO Max. Resolution 1920 x 1080 Main Stream • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 1920x1080, 1280x960, 1280x720 • Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps. Sub-Stream • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile H.265+ Main Stream Supported Video Bit Rate • Main Stream: 256 Kbps to 4 Mbps • Sub-Stream: 64 Kbps to 512 Kbps Image Image Settings • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range DWDR SNR ≥ 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes AUDIO Audio Communication N/A Audio Input Yes (Built-in Microphone) Audio Output N/A Audio Compression Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) NETWORK Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS ONVIF Yes API ONVIF Profile S/T Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool Web Browser • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above Cloud Yes Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication ALARM AND EVENT MANAGEMENT Smart Event • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • People Detection • Vehicle Detection Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) Alarm Linkage • Sending Email • Send to Alarm Server • Upload to FTP • Message Push Deep Learning Function People & Vehicle Analytics N/A INTERFACES Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE Alarm N/A Reset Button N/A Power DC Power Port On-board Storage N/A Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera Built-in Speaker N/A Audio N/A GENERAL Operating Temperature -30? to 60 °C Storage Temperature -40? to 60 °C Operating Humidity 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Package Content • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories Material Metal Net Weight X Kg Power Supply • 12V DC ± 5%, Max. X W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 7.4 W Protection IP67 Product Dimensions (L x W x H) 6.7 × 2.9 × 2.9 in (169.8 × 74 × 74 mm) Certifications CE, NTRA, KC, BSMI, IC, ROHS
