Tp-link C300HP-4

Tp-link C300HP-4

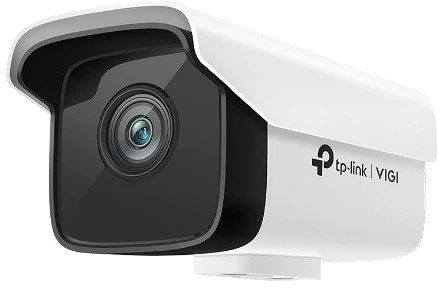

Ip csőkamera - c300hp-4 (3mp, 4mm, kültéri ip67, h265, ir30m, poe/12vdc)

HÁLÓZAT

Biztonság Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Szabvány TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API ONVIF

Simultaneous Live View 4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams

ÁLTALÁNOS

Operating Temperature -30–60 °C

Certifications CE, FCC, RCM, BSMI, VCCI, IP67, RoHS

Méret (Ma x Sz x Mé) 164.9 × 87.4 × 83.4 mm

Material Plastic

Tömeg 283.5g

General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

KAMERA

Képérzékelő 1/2.7” Progressive Scan CMOS

Optika 4 mm / 6 mm

Aperture 4 mm: F2.4

6 mm: F2.0

Lens Mount M12

Látószög 4 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 114°

6 mm, horizontal FOV: 54°, vertical FOV: 31°, diagonal FOV: 62°

Day/Night Mechanism IR Cut Filter

IR Working Distance 30m

Min. szükséges megvilágítás Color: 0.1 Lux@F2.0 ; 0 Lux with IR

Weatherproof Rating IP67

Digital Noise Reduction 3D DNR

WDR DWDR

VIDEÓ/KÉP

Videó tömörítés Main stream: H.265/H.264

Sub-Stream: H.265/H.264

Kép frissítés (frame) és felbontás Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240

Videótovábbítás Main Stream

Sub-Stream

Képbeállítás Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate 64 Kbps to 6 Mbps

SMART FEATURE-SET

Smart Event Area Intrusion Detection, Line-Crossing Detection

Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login)

Linkage Method Trigger Notification: ONVIF, HTTPS

Region of Interest 1 Region

FIZIKAI KEZELŐFELÜLET

Hálózati csatlakozás 1 RJ45 10/100M Self-Adaptive Ethernet Port

Alarm -

Gomb -

Video Output -
