Securit IN-AND-OUTDOOR

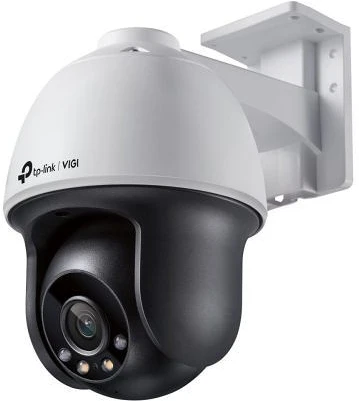

Tp-link wireless y camera in-and-outdoor vigi c540 white/ black eu

Features:

• 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
• Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
• Waterproof: Reliable IP66 for stable outdoor performance.
• Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
• VIGI App: Manage your security from the palm of your hand with the VIGI app.

CAMERA
- Image Sensor: 1/3” Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Slow Shutter: Yes
- Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
- Day/Night Mechanism: IR Cut Filter
- Day/Night Switch: Unified/ Scheduled/ Auto

LENS
- Type: Fixed Focal Lens
- Focal Length: 4 mm
- Aperture: F1.6
- FOV:
- Horizontal FOV: 79°
- Vertical FOV: 43°
- Diagonal FOV: 93°
- Lens Mount: M12
- DORI Distance:
- Detect: 80 m (262 ft)
- Observe: 33 m (109 ft)
- Recognize: 16 m (52 ft)
- Identify: 8 m (26 ft)

PTZ
- Pan/Tilt Range:
- Pan: 0° to 350°
- Tilt: 0° to 120°
- Pan/Tilt Speed:
- Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s
- Tilt Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s
- Manual Control Speed: Configurable from 8° to 35°/s
- Presets: 300
- Patrol Scan: 8 patrols, up to 8 presets for each patrol
- Power-off Memory: Yes; Auto restore to previous PT and lens status after power failure
- Park Action: Yes; Preset; Patrol Scan
- 3D Positioning: Yes
- Angle Adjustment (Manual) Range: Pan: 0° to 348°, Tilt: 0° to 120°

ILLUMINATOR
- IR LED: Quantity: 2, Range: 30m, Wavelength: 850nm
- White LED: Quantity: 2, Range: 30m
- Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

VIDEO
- Max. Resolution: 2560 X 1440
- Main Stream Frame Rate:
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Main Stream Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
- Sub-Stream Frame Rate:
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Sub-Stream Resolution: 640x480, 352x288, 320x240
- Bit Rate Control: CBR, VBR
- Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+: Main Stream Supported
- H.265 Type: Main Profile
- H.265+: Main Stream Supported
- Video Bit Rate:
- Main Stream: 256 Kbps to 4 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps

- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range: DWDR
- SNR: ≥ 52 dB
- Image Parameters Switch: Yes
- Privacy Mask: Up to 4 Masks
- ROI: 1 Region
- OSD Setting: Yes

AUDIO
- Audio Communication: Two-Way Audio
- Audio Input: Yes
- Audio Output: Yes
- Audio Compression: Yes
- Audio Sampling Rate: 8KHz
- Environment Noise Filtering: Yes
- Audio Bit Rate: 64 Kbps (G.711 alaw)

NETWORK
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, UDP, SSL/TLS
- ONVIF: Yes
- API: ONVIF
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
- Smart Event: Area Intrusion Detection, Line-Crossing Detection, People Detection
- Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
- Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
- Linkage Method: N/A
- Output Notification: Message Push

INTERFACES
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
- Alarm: N/A
- Reset Button: Yes
- Power: DC Power Port
- On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
- Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
- Built-in Speaker: Yes
- Audio: N/A

GENERAL
- Operating Temperature: -30–60 °C
- Storage Temperature: -40–60 °C
- Operating Humidity: 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
- Material: Plastic
- Net Weight: 0.62 Kg
- Gross Weight: 0.98 Kg
- Power Supply: 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug; PoE: 802.3at, class 4, Max. 16 W
- Protection: IP66
- Product Dimensions (L x W x H): 120 × 172 × 198 mm
- Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
