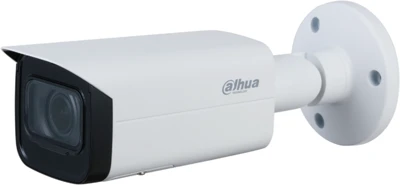

IPC-HFW2531T-ZS-S2
5MP Lite IR Vari-focal Bullet Network Camera
> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
> Outputs 2688×1520 (2688×1520) @ 25/30 fps, and supports max. 5MP (2592×1944) @ 20 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 60 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
> Supports max. 256 GB Micro SD card
> 12V DC/PoE power support
> IP67 protection
Product Selector
Use one of the options below to locate your desired product.
Start Now
Camera |
Image Sensor | 1/2.7” 5Megapixel progressive CMOS |
Effective Pixels | 2592 (H) × 1944 (V) |
ROM | 128 MB |
RAM | 256 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
Min. Illumination | 0.008 Lux@F1.5 |
IR Distance | 60 m (196.8 ft) |
IR On/Off Control | Auto/Manual |
IR LEDs Number | 4 |
Pan/Tilt/Rotation Range | Horizonal: 0°–360°
Vertical: 0°–90°
Rotation: 0°–360° |
Lens |
Lens Type | Motorized vari-focal |
Mount Type | φ14 |
Focal Length | 2.7 mm–13.5 mm |
Max. Aperture | F1.5 |
Field of View | Horizonal: 100°–26° Vertical: 72°–20° Diagonal: 133°–33° |
Close Focus Distance | 0.8m–0.8m (2.62 ft–2.62 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 64 m (209.97 ft) | 25.6 m (83.99 ft) | 12.8 m (41.99 ft) | 6.4 m (21.00 ft) |
T | 220 m (721.78 ft) | 88 m (288.71 ft) | 44 m (144.36 ft) | 22 m (72.18 ft) |
Smart Event |
General IVS Analytics | Tripwire; intrusion |
Video |
Video Compression | H.265; H.264; H.264B; MJPEG |
Smart Codec | Yes |
Video Frame Rate | Main stream: 2592 × 1944 (1 fps-20 fps) 2688 × 1520 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) |
Stream Capability | 2 streams |
Resolution | 2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32Kbps ~ 8192Kbps H.265: 12Kbps ~ 8192Kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Smart IR | Yes |
Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
Mirror | Yes |
Privacy Masking | 4 areas |
Network |
Network | RJ-45 (10/100 Base-T) |
Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
Interoperability | ONVIF(Profile S/Profile G); CGI; P2P; Milestone; Genetec |
User/Host | 20 |
Edge Storage | Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
Browser | IE Chrome Firefox |
Management Software | Smart PSS; DSS; DMSS |
Mobile Phone | IOS; Android |
Certification |
Certifications | CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
Power |
Power Supply | 12V DC/PoE (802.3af) |
Power Consumption | |
Environment |
Operating Conditions | -30°C to +60°C (-22°F to +140°F)/less than ≤ 95% |
Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
Protection | IP67 |
Structure |
Casing | Metal |
Dimensions | 244.1 mm × Φ90.4 mm (9.61" × Φ3.26") |
Net Weight | 0.86 kg (2.0 lb) |
Gross Weight | 1.10 kg (2.5 lb) |
