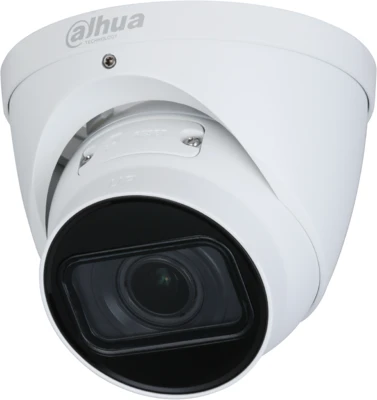

Dahua IPC-HDW2531T-ZS
Ip turretkamera - ipc-hdw2531t-zs (5mp, 2,7-13,5mm(motoros), kültéri, h265+, ip67, ir40m, icr, wdr, sd, poe)

5MP Lite IR Vari-focal Eyeball Network Camera

> 5MP, 1/2.7” CMOS image sensor,low illuminance, high image definition

> Outputs 2688×1520 (2688×1520) @ 25/30 fps, and supports max. 5MP (2592×1944) @ 20 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in IR LED, max IR distance: 40 m

> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire

> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection

> Supports max. 256 GB Micro SD card

> 12V DC/PoE power support

> IP67 protection

• Product Selector

  Use one of the options below to locate your desired product.

  Start Now

  Camera
  Image Sensor	1/2.7” 5Megapixel progressive CMOS
  Effective Pixels	2592 (H) × 1944 (V)
  ROM	128 MB
  RAM	256 MB
  Scanning System	Progressive
  Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
  Min. Illumination	0.008 Lux@F1.5
  IR Distance	40 m (131.2 ft)
  IR On/Off Control	Auto/Manual
  IR LEDs Number	2
  Pan/Tilt/Rotation Range	Horizonal: 0°–355° Vertical: 0°–78° Rotation: 0°–360°
  Lens
  Lens Type	Motorized vari-focal
  Mount Type	φ14
  Focal Length	2.7 mm–13.5 mm
  Max. Aperture	F1.5
  Field of View	Horizonal: 100°–26° Vertical: 72°–20° Diagonal: 133°–33°
  Close Focus Distance	0.8m–0.8m (2.62 ft–2.62 ft)
  DORI Distance	Lens	Detect	Observe	Recognize	Identify
  W	64 m (209.97 ft)	25.6 m (83.99 ft)	12.8 m (41.99 ft)	6.4 m (21.00 ft)
  T	220 m (721.78 ft)	88 m (288.71 ft)	44 m (144.36 ft)	22 m (72.18 ft)
  Smart Event
  General IVS Analytics	Tripwire; intrusion
  Video
  Video Compression	H.265; H.264; H.264B; MJPEG
  Smart Codec	Yes
  Video Frame Rate	Main stream: 2592 × 1944 (1 fps-20 fps) 2688 × 1520 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps)
  Stream Capability	2 streams
  Resolution	2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)
  Bit Rate Control	CBR/VBR
  Video Bit Rate	H.264: 32Kbps ~ 8192Kbps H.265: 12Kbps ~ 8192Kbps
  Day/Night	Auto(ICR)/Color/B/W
  BLC	Yes
  HLC	Yes
  WDR	120 dB
  White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
  Gain Control	Auto/Manual
  Noise Reduction	3D DNR
  Motion Detection	OFF/ON (4 areas, rectangular)
  Region of Interest(RoI)	Yes (4 areas)
  Smart IR	Yes
  Image Rotation	0°/90°/180°/270° (Supports 90°/270° with 2688×1520 resolution and lower.)
  Mirror	Yes
  Privacy Masking	4 areas
  Network
  Network	RJ-45 (10/100 Base-T)
  Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
  Interoperability	ONVIF(Profile S/Profile G); CGI; P2P; Milestone; Genetec
  User/Host	20
  Edge Storage	Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
  Browser	IE Chrome Firefox
  Management Software	Smart PSS; DSS; DMSS
  Mobile Phone	IOS; Android
  Certification
  Certifications	CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
  Power
  Power Supply	12V DC/PoE (802.3af)
  Power Consumption
  Environment
  Operating Conditions	-30°C to +60°C (-22°F to +140°F)/less than ≤ 95%
  Storage Temperature	-40°C to +60°C (-40°F to +140°F)
  Protection	IP67
  Structure
  Casing	Metal
  Dimensions	108.3 mm × Φ122 mm (4.26" × Φ1.80")
  Net Weight	0.69 kg (1.6 lb)
  Gross Weight	0.88 kg (2.0 lb)
