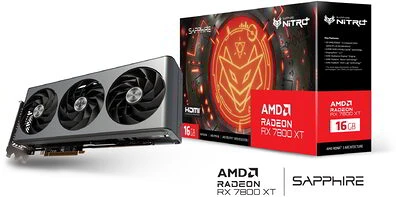

Sapphire 11330-01-20G
Radeon rx7800 xt 16gb ddr6 oc nitro+

Specifications

• #SKU#: 11330-01-20G SAPPHIRE NITRO+ AMD Radeon™ RX 7800 XT Gaming Graphics Card with 16GB GDDR6, AMD RDNA™ 3 architecture

GPU

AMD Radeon™ RX 7800 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock

• Boost Clock: Up to 2565 MHz
• Game Clock: Up to 2254MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3840

Compute Units

60 CU (with RT+AI Accelerators)

Infinity Cache

64MB

Ray Accelerators

60

Memory Size/Bus

16GB/256 bit GDDR6

Memory Clock

19.5 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI™: 7680×4320
• DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

• 2x HDMI
• 2x DisplayPort

BIOS Support

• Dual UEFI

Game Index

4K

Sapphire Features

• Dual BIOS
• TriXX Software Switch
• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate with ARGB
• ARGB Light Bar
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade
• Assistive System Fan Control
• Aluminum Alloy Frame
• Dedicated VRM Cooling
• Wave Fin Design
• V Shape Fin Design for GPU Cooling
• TriXX Supported
• Fan Check
• Fan Quick Connect
• TriXX Boost
• NITRO Glow
• External RGB LED MB Synchronization

Accessories Bundled

• Graphics Card Supporter
• ARGB Extension Cable

AMD Features

• AMD RDNA™ 3 Architecture
• 60 AMD RDNA™ 3 Compute Units
• 64MB AMD Infinity Cache™ Technology
• DisplayPort™ 2.1 Support
• AMD Radiance Display™ Engine
• 16GB GDDR6 on 256-Bit Memory Bus
• PCI® Express 4.0 ready
• AMD FidelityFX™ Super Resolution technology
• Microsoft® DirectX® 12 Ultimate Support
• Microsoft® DirectStorage Support
• Vulkan® Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Edition™
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon™ Super Resolution technology
• AMD Link
• AMD FreeSync™ Technology

Cooling

3 Fans

Form Factor

3 slot, ATX
Dimension: 320(L)X 134.85(W)X 61.57 (H)mm

Power Consumption

288W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement

• Minimum 700 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
