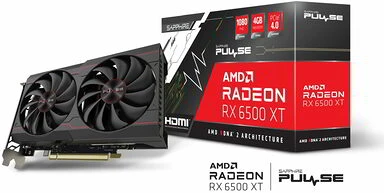

Sapphire 11314-01-20G
Radeon rx 6500xt 4gb ddr6 pulse

Csatlakozók
VGA foglalat típusa	PCIe x16 (4.0)
HDMI	1db
DisplayPort	1db
6-pin tápcsatlakozó	1db
Fő tulajdonságok
modell széria	Radeon RX 6500 XT
chipgyártó	AMD
GPU órajele	2825MHz
memória órajele	18000MHz
videómemória mérete	4GB
videómemória típusa	GDDR6
memóriabusz szélessége	64-bit
max. felbontás	7680x4320
kezelt monitorok száma	2db
többkártyás üzemmód	Crossfire/DX12
hűtés típusa	aktív hűtés

• GPU: Boost Clock: Up to 2825MHz
• Memory: 4GB/64 bit DDR6. 18 Gbps Effective
• Stream Processors: 1024
• RDNA™ 2 Architecture
• Ray Accelerator: 16

• #SKU#: 11314-01-20G SAPPHIRE PULSE AMD Radeon™ RX 6500 XT, 4GB, AMD RDNA™ 2

GPU

AMD Radeon™ RX 6500 XT Graphics Card
6nm GPU
AMD RDNA™ 2 Architecture

Engine Clock

• Boost Clock: Up to 2825 MHz
• Game Clock: Up to 2685 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

1024

Infinity Cache

16MB

Ray Accelerators

16

Memory Size/Bus

4GB GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 2 Displays

Resolution

• HDMI™: 7680×4320
• DisplayPort1.4: 7680×4320

Interface

PCI-Express 4.0

Output

• 1x HDMI
• 1x DisplayPort

BIOS Support

• UEFI

Game Index

1080P

Sapphire Features

• Premium Digital Power Design

• Fuse Protection

• Dual-X Cooling Technology

• Intelligent Fan Control

• Precision Fan Control

• Metal Backplate

• TriXX Supported

• TriXX Boost

AMD Features

• AMD RDNA 2 Gaming Architecture
• DirectX 12 Ultimate support
• AMD Smart Access Memory
• AMD Infinity Cache
• 6nm GPU
• PCI Express 4.0 support
• AMD FreeSync Technology
• DisplayPort 1.4 with DSC
• HDMI support
• Video Streaming up to 8K
• AMD Radeon VR Ready Premium
• AMD FidelityFX
• AMD Radeon Image Sharpening
• AMD Radeon Anti-Lag
• AMD Radeon Software
• Game Driver Optimizations

Cooling

Dual Fans

Form Factor

2 slot, ATX
Dimension: 194(L)X 107(W)X 40(H)mm

Power Consumption

• 130W (Board Power)

OS

Linux®, Windows® 7*, Windows® 10, and Windows 11 64-bit operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement

• Minimum 400 Watt Power Supply
• 1 x 6-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
