Asus PCI-EX16X

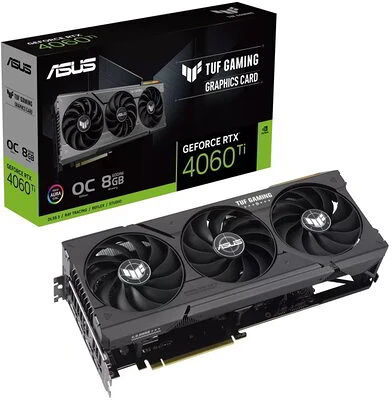

ASUS TUF Gaming GeForce RTX™ 4060 Ti 8GB GDDR6 OC Edition with DLSS 3, lower temps, and enhanced durability

• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• OC edition: 2655 MHz (OC mode)/ 2625 MHz (Default mode)
• Axial-tech fans scaled up for 21% more airflow
• Dual ball fan bearings last up to twice as long as conventional designs
• Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
• Vented exoskeleton adds structural rigidity and vents to increase heat reliability
• Auto-Extreme precision automated manufacturing for higher reliability
• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Model

TUF-RTX4060TI-O8G-GAMING

Graphic Engine

NVIDIA® GeForce RTX™ 4060 Ti

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

8GB GDDR6

Engine Clock

OC Mode: 2655MHz
Default Mode: 2625MHz (Boost)

CUDA Core

4352

Memory Speed

18 Gbps

Memory Interface

128-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Collection Card
1 x Speedsetup Manual
1 x Thank you Card
1 x TUF Graphic card holder
1 x TUF Gaming Ceritificate
1 x TUF Velcro Hook & Loop

Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

300 x 139 x 62.4 mm

Recommended PSU

650W

Power Connectors

1 x 8-pin

Slot

3.12 slot

AURA SYNC

ARGB
