Startech PEX2MPEX
Pci-e x1 mini pci-e x1 adapter

illesztés: PCIe x1, Mini PCIe x1: 1dbillesztés: PCIe x1, Mini PCIe x1: 1db

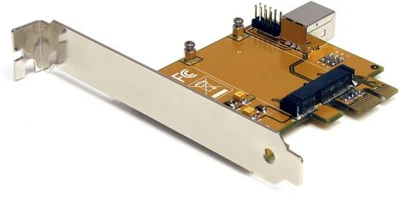

The PEX2MPEX PCI Express to Mini PCI Express Adapter Card enables Mini PCI Express cards (Mini Cards) to be used in a standard PCI Express card slot. These PCIe Mini Cards, which are typically designed for laptops or small form factor ITX computers, can be used normally inside more conventional desktop computers.

The adapter card features a complete PCIe to Mini PCIe pass-through design that eliminates data transfer rate bottlenecks, while the included full and low profile installation brackets makes this adapter card compatible with most computer chassis.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

• Enables all types of full-length mini PCI Express cards to fit into a standard PCI Express card slot
• Includes both a full and low profile/half-height installation bracket for installation into almost any computer chassis
• Backed by a StarTech.com 2-Year warranty and free lifetime technical support

Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Interface	Mini PCI Express
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
Internal Ports	1 - IDC (10 pin; Motherboard Header) Male
	1 - Mini PCI Express x1 (52 pin) Slot Female
	1 - USB B (4 pin) Female
Special Notes / Requirements
System and Cable Requirements	PCI Express expansion slot
Indicators
LED Indicators	1 - Power
Environmental
Humidity	5% ~ 95% RH
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Product Height	2.7 in [68 mm]
Product Length	3 in [75 mm]
Product Weight	1.6 oz [46 g]
Product Width	0.6 in [14 mm]
Packaging Information
Package Quantity	1
Shipping (Package) Weight	5.5 oz [156 g]
What's in the Box
Included in Package	1 - PC...
