Startech PEX1PCI1
Pci-e x1 to pci adapter

illesztés: PCIe x1, PCI: 1dbillesztés: PCIe x1, PCI: 1db

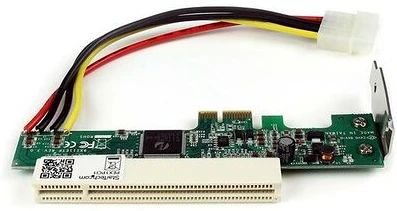

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.

A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).

The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.

To ensure suitable installation in any low profile server or desktop computer, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.

The StarTech.com Advantage

• The unique bracket design allows a low profile/half-height PCI card to work seamlessly in a PCI Express-based expansion slot
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

Bus Type	PCI Express
Card Type	Standard Profile
Chipset ID	Pericom - PI7C9X111SL
Interface	PCI / PCI-X (5 / 3.3V)
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
Internal Ports	1 - LP4 (4 pin; Molex Large Drive Power) Male
	1 - PCI (5V; 32-bit) Slot Female
Software
OS Compatibility	OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements	The PEX1PCI1 is not compatible with 32-bit 3.3V PCI cards. It is compatible with 5V or universal 3.3V/5V PCI cards only.
Environmental
Operating Temperature	0°C to 85°C (32°F to 185°F)
Physical Characteristics
Product Height	0.8 in [20 mm]
Product Length	5.3 in [135 mm]
Product Weight	1.8 oz [52 g]
Product Width	2.8 in [70 mm]
Packaging Information
Shipping (Package) Weight	4.9 oz [140 g]
What's in the Box
Included in Package	1 - PCI Express to PCI Card
	1 - Spare Full Profile Bracket
